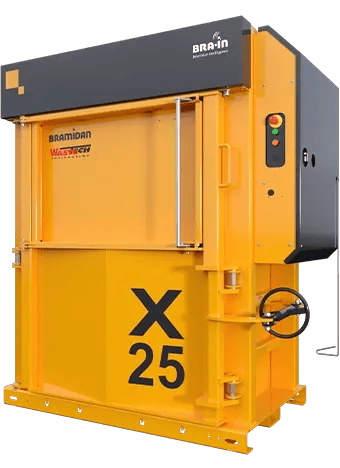

X25 Baler

X25 Baler

For Larger Demands

The X25 is equipped with cross cylinders, giving you stable compression and superior press force, together with a low overall height. Combined with a long stroke, a high bale weight can be achieved.

This cardboard and plastic baler is designed with easy servicing in mind, for example the positioning of the hydraulic unit mounted below the control panel on the side of the machine.

  • Noiseless. Due to a unique hydraulic system.
  • Safe/Steady Door OpeningUsing a strong threaded spindle.
  • Easy Installation. Very low overall height.

Features

E:/mosaic/spool/temppitif9364812

The cross cylinders ensure stable compression and a low overall height.

The bale is ejected by a safe two-hand operation.

A threaded spindle ensures steady and safe opening of the main door.

  • cardboard and plastic baler

Non-Standard Door Options

Automatic Door

The AD-door automatically closes and reopens after each cycle.

Flap Door

The flap door acts as a funnel – it facilitates easy flow of waste into the baler chamber.

Technical Specifications

Press Force (t)25
Power Supply3 x 400V 50Hz 16A
Motor (kW)4.0
Noise Level (dB)59-60
Cycle Time (sec)23
Dimensions WxDxH (mm)1745 x 1260 x 1995
Weight (kg)1410
Filling Opening WxH (mm)1090 x 530
Filling Height (mm)955
Chamber Height (mm)1380
Stroke (mm)950
Bale Size WxDxH (mm)1200 x 800 x 800
Bale Weight Cardboard (kg)200-300
Bale Weight Plastic (kg)250-350

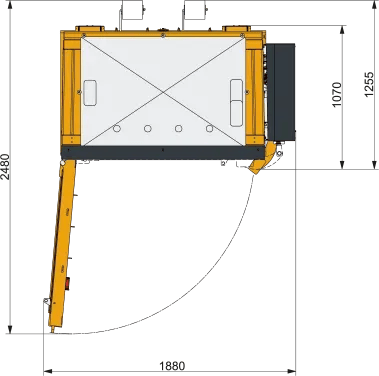

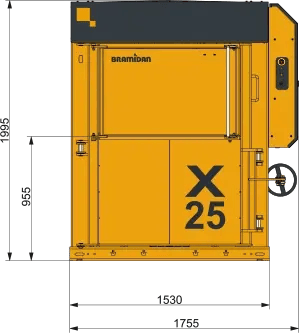

Dimensions

Medium Balers Complete Range

A man putting cardboard box in the baler

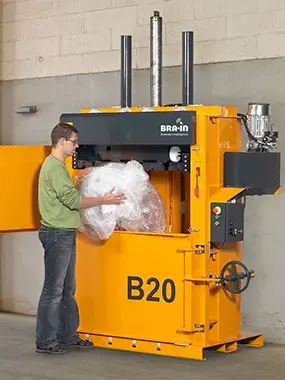

B20 Baler

X25_GALV_Baler_Image_1

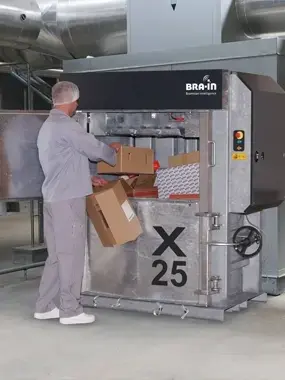

X25 Galv Baler

cardboard and plastic baler

X25 Baler

Yellow Cardboard Baler

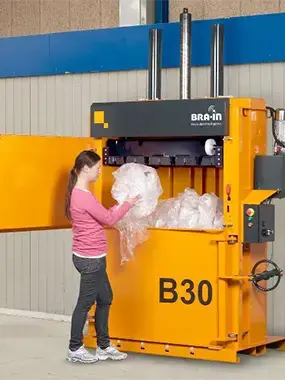

B30 Baler

X30_Baler_Image_1

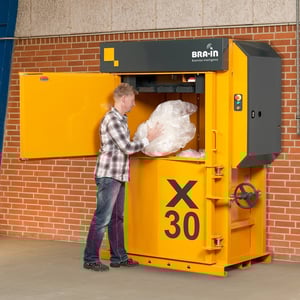

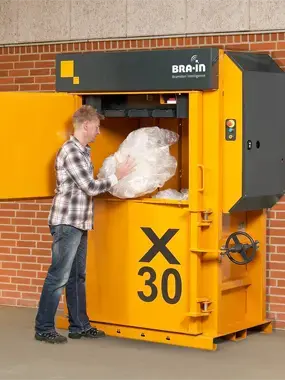

X30 Baler

About Our Partner Bramidan

Bramidan balers are recognised throughout Europe as one of the best waste and paper baler solutions for their immaculate design and quality. We stock a broad range of Vertical Balers to compact and bale waste, cardboard, plastic and polystyrene.

Contact us to discuss your needs and industry with our expert advisors who can help you choose the best waste or paper baler for your requirements.
