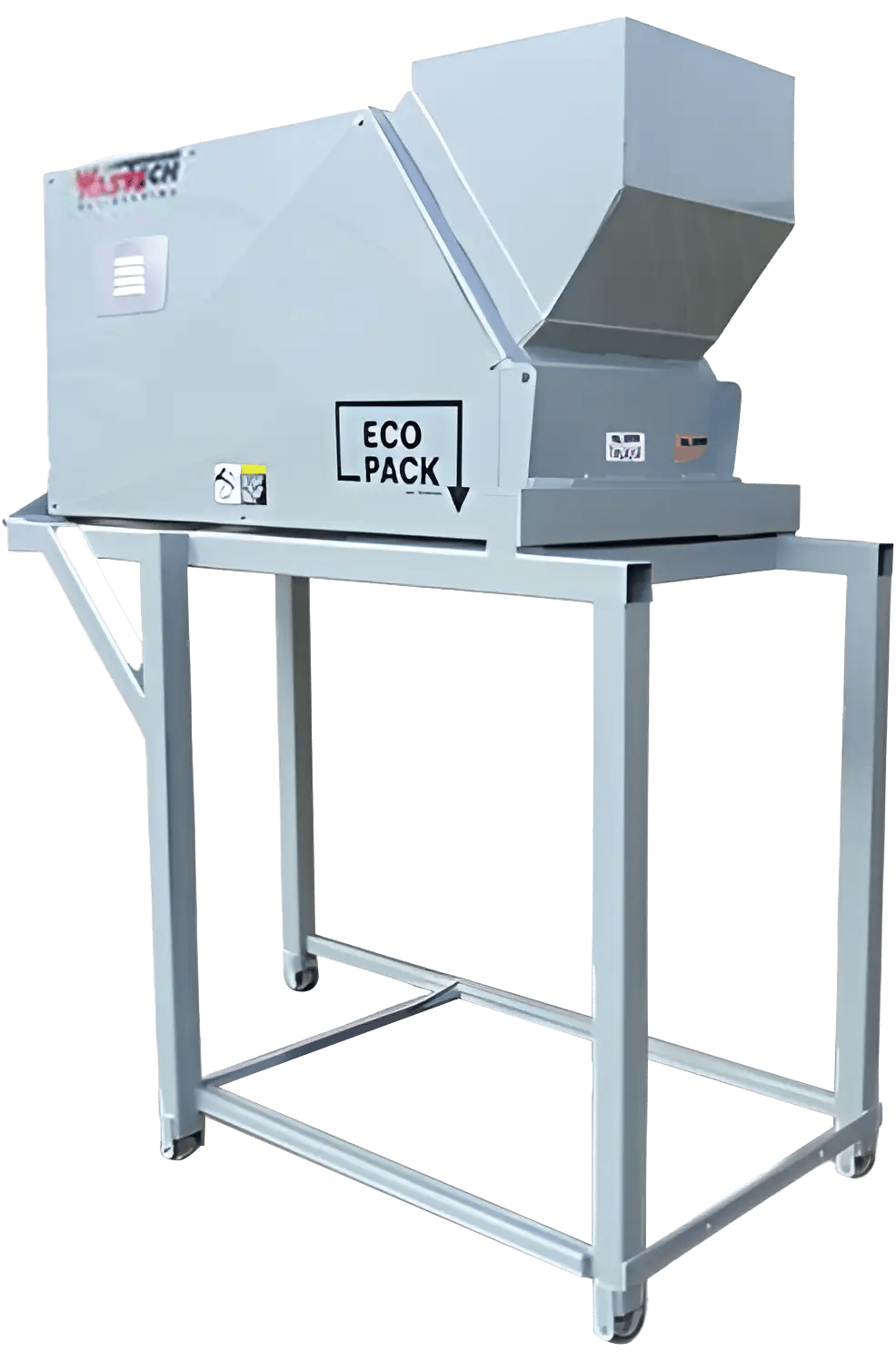

ECOPACK CHUTE
COMPACTOR

Overview
The patented EcoPack compactor has been specifically developed for compaction of waste delivered via an overhead chute in multi-story apartments and entertainment venues.
Designed to suit tight room restraints, the EcoPack is a true hydraulic compactor that contains the high packing forces within itself to eliminate OH&S issues and bin damage.
Enquire today about this quality machine or any other of the quality compactors we have on offer. Call 1800 986 743 or use our online enquiry form to the left of screen for more information.
- High compaction reducing bins required in floor space
- Robust high tensile steel construction
- Quiet and efficient hydraulic system
- Continually sealed door
- Suits all bin sizes
- Suits both carousel or linear bin feed systems
- Waste is compacted inside the compactor unit and not the bin
- No bin damage
Key Features
Carousel System
Ideal for rooms with tighter space, this system rotates bins in a circular cycle system.
Conveyor System
Ideal for rooms with longer, narrower space, this system rotates bins in a linear cycle system.
Technical Specifications
| Specification | Value |
|---|---|
| Compaction Ratio | 2:1 to 5:1 (dependant on waste types) |
| Construction | 5mm and 20mm Grade 350 High Tensile Steel |
| Charge Box Opening | 560 x 600mm |
| Throughput | 80 ltr/sec per 15 second cycle = 20m³/hr |
| Power Requirement | 415V / 20A / 5 Pin power point |
| Hydraulic System | 12 Lpm Pump / 5.5kW Motor |
| Compaction Force | 62kN or 6.3 tonnes @ 14Mpa |
| System | On Carousel System: Multiple Configurations Available |
| Controls | PLC Control with Electronic Cycle |
| Service | Comprehensive fixed price service available |
| Warranty | 12 months (terms & conditions apply) |

Roto Feed System

Conveyor Feed System
