TRANSFER TRAILERS

Overview
Maximum Payload, Minimum Tare Weight
The Wastech ‘Clearline’ rolled wall body design provides greater durability and integral strength to withstand the high compaction forces in waste transfer station applications. The Clearline Trailer is built to withstand the high piercing forces during compaction of industrial type wastes.
This Wastech designed trailer incorporates the use of high tensile steel plate in the body, reducing tare weight and increasing payload. Additionally, the smooth internal design along with the hydraulic eject blade, safely and efficiently pushes out the waste load at the landfill.
The Clearline Trailer is available in 57m³, 60m³, and 65m³. We also accommodate custom sizes to meet specific operational requirements.
Tri-Axle
A compact transfer trailer with three axles, ideal for medium-capacity waste and bulk haulage.
Quad-Axle
Four-axle trailer offering greater payload capacity and stability for heavier transfer loads.
A-Double
A high-capacity double-trailer combination designed for efficient long-haul bulk transfer.
Pocket Road Train
A shorter road train configuration suited to regional routes with access restrictions.

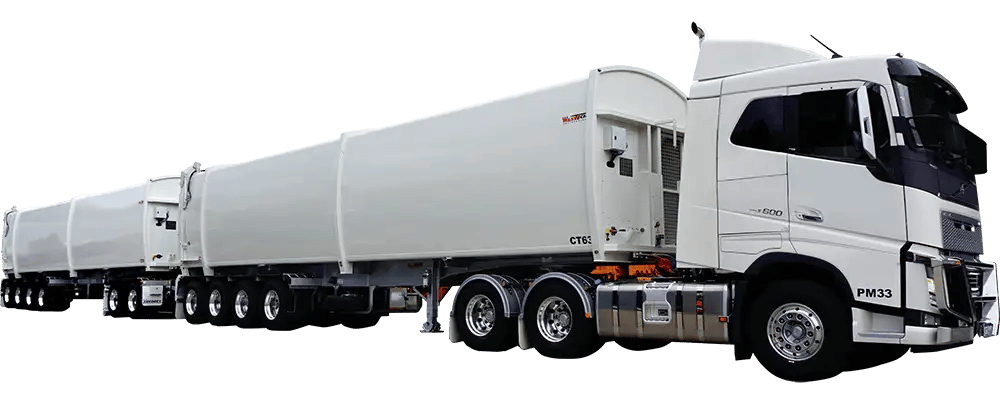

Road Train
Large multi-trailer setup built for maximum payload over long distances in open haulage networks.
Top-Load Moving Floor Trailer
A hydraulically powered walking-floor trailer for fast loading/unloading of loose bulk materials.
Key Features
Low tare weight
Carry more payload.
Smooth body design
Ideal for signage/branding.
Hydraulic pusher blade
Fast, complete load ejection.
Rear door options
Hydraulic or manual.
Customisable builds
From tri-axle to road trains.
Built for Australia
Engineered for harsh conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Material | High Tensile Steel (5mm floor, 4mm walls and roof) |
| Rear Door Cycle Time | 15 Secs. (Hydraulic Operation) |
| Preferred Hydraulic Pump Size | 80l / min |
| Working Pressure | 2,100 PSI |
| Cylinder Type | 5 & 6 Stage Telescopic Cylinder with Centre Support |
| Eject Blade Cycle Time | Eject: 140 secs. | Retract: 150 secs. (5 Stage Cylinder - Single Trailer) |
| Doors | Top or Side Hinged Rear Doors (Hydraulic or Manual) |
| Tare Weight | From 11,100kg - Single Trailer (subject to options) |
