Vertical Baler

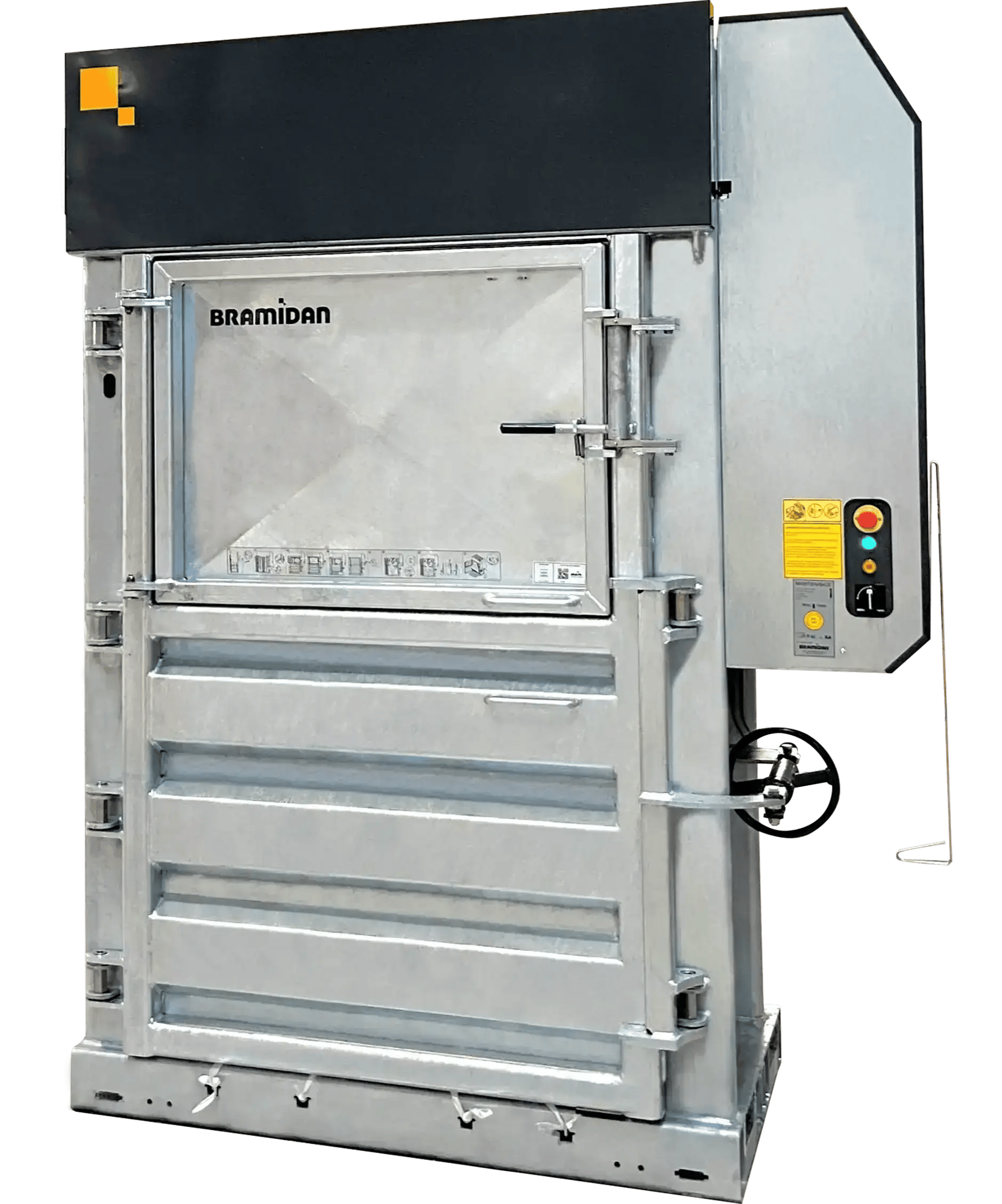

BRAMIDAN BALER X50 GALV

Overview
In wet and demanding crushing environments, the X50 Galvanised Baler comes into its own and is ideal for applications with no hygienic requirement for stainless, but where demands on surface treatment are so severe that a normal painted crusher would not survive in the longer term.
Ideal for all waste types, the X50 Galvanised Baler compacts while also allowing draining of residual liquids, a flapped door also helps the user easily handle bottles and cans without back run.
- Quality galvanised finish. DS/EN 1461:2009 galvanised.
- Convenient. Baling and draining of residual liquids available.
- Versatile. Suitable for PET bottles, aluminium and food cans and plastic jugs.
Key Features
Waste Types
Cardboard, plastic foil, paper, PET bottles, alu cans, tin cans, hard plastic, liquid, EPS
Press Force
50T
Waste Volume
Large
Feed Opening
W1090xH610mm
Bale Size
W1200xD800xH1100mm
Bale Weight
350-500kg
Technical Specifications
| Specification | Value |
|---|---|
| Press Force (t) | 50 |
| Power Supply | 3 x 400V 50Hz 32A |
| Motor (kW) | 5.5 |
| Noise Level (dB) | 71 |
| Cycle Time Avg. (sec) | 28 |
| Dimensions WxDxH (mm) | 1965 x 1385 x 2580 |
| Machine Weight (kg) | 2590 |
| Feed Opening WxH (mm) | 1090 x 610 |
| Filling Height (mm) | 1250 |
| Chamber Height (mm) | 1710 |
| Stroke (mm) | 1210 |
| Bale Size WxDxH (mm) | 1200 x 800 x 1100 |
| Bale Weight Cardboard (kg) | 350-450 |
| Bale Weight Plastic Foil (kg) | 400-500 |
| Number of Ties | 4 |
| Type of Tying | Twine / Steel Wire |
| Full Bale Light | Yes |
| Bale Eject | Automatic |
