Overview

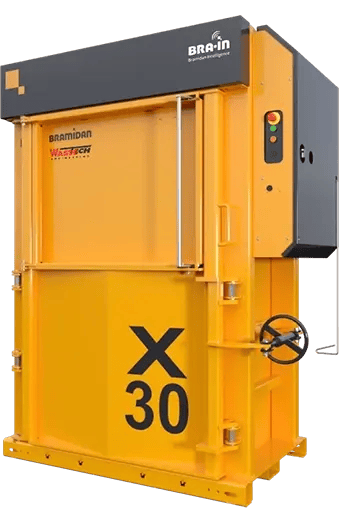

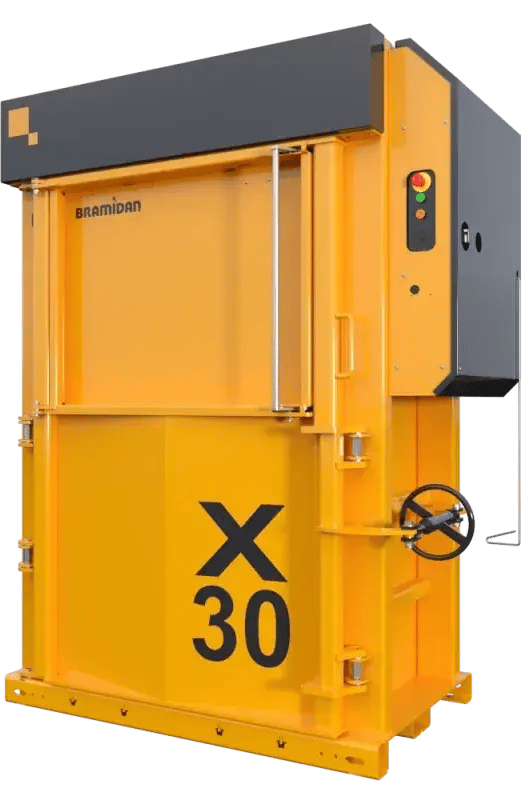

This X30 baler is suitable for large quantities of waste. It is a compact machine with high capacity and superior press force. The extra wide filling opening makes the daily operation very easy.

Use this baler to compact most types of material including PET bottles, plastic jugs, aluminium cans, big bags, and expandable plastics.

Ultra-Wide Loading: With a 1,090 × 655 mm feed opening, it easily handles bulky boxes and materials.
Quiet, High-Force Operation: Delivers 30 t of press force using compact cross-cylinder hydraulics for noticeably lower noise levels (59–60 dB).
Versatile Material Compatibility: Capable of baling a wide range of waste including cardboard, plastic jugs, PET bottles, aluminum/tin cans, textiles, and EPS.

Waste Types

Cardboard, plastic foil, paper, PET bottles, alu cans, tin cans, hard plastic, textile, EPS

Press Force

30T

Waste Volume

Medium

Feed Opening

W1090xH655mm

Bale Size

W1200xD800xH1200mm

Bale Weight

275-425kg

Load cardboard into the X30 baler chamber.

Load plastic waste into the X30 baler chamber.

Cross-cylinder design delivers high compaction power in a compact frame.

Use the two-hand ejection controls for safe bale release.

Activate the ejection system to release the finished cardboard bale.

Pull the completed cardboard bale clear of the baler.

Pull the finished plastic bale from the baler.

Technical Specifications

Specification	Value
Press Force (t)	30
Power Supply	3 x 400V 50Hz 16A
Motor (kW)	4.0
Noise Level (dB)	59-60
Cycle Time (sec)	25

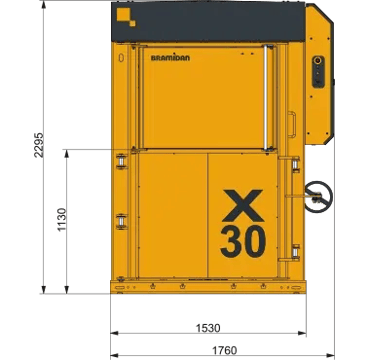

Dimensions WxDxH (mm)	1745 x 1260 x 2295
Weight (kg)	1710
Filling Opening WxH (mm)	1090 x 655
Filling Height (mm)	1130
Chamber Height (mm)	1675
Stroke (mm)	940
Bale Size WxDxH (mm)	1200 x 800 x 1000
Bale Weight Cardboard (kg)	280-350
Bale Weight Plastic (kg)	350-450
