Automotive & Manufacturing
Vertical Baler

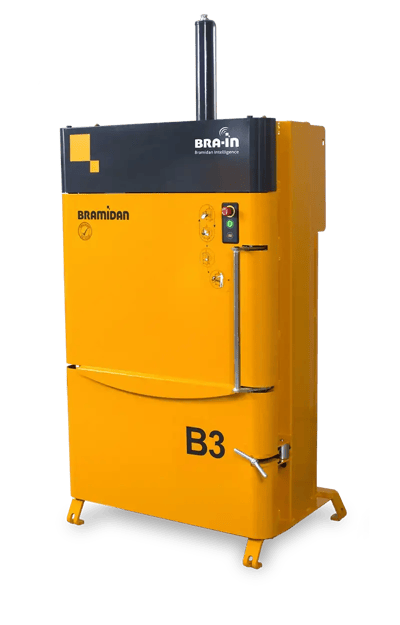

BRAMIDAN BALER B3

Overview
The B3 is one of the smallest balers in our machine programme. With a very small base area and a 230V connection, it is easy to locate.
To ensure the chamber is not overloaded, the B3 is equipped with a full-indicator which flashes when the baler is full, and the press plate stays down.
Furthermore the baling process is simplified as the straps can be pulled directly through the main door.
- Simple and safe operation. Green light blinks when chamber is full.
- Easy to replace strap rolls. They are placed in front.
- Compact design. Offering low overall height.
Key Features
Waste Types
Cardboard, Plastic Foil, Paper
Press Force
3T
Waste Volume
Small
Feed Opening
W770xH460mm
Bale Size
W770xD500xH600mm
Bale Weight
30-60kg
Technical Specifications
| Specification | Value |
|---|---|
| Press Force (t) | 3 |
| Power Supply | 1 x 230V 50Hz 10A |
| Motor (kW) | 1.1 |
| Noise Level (dB) | 65–68 |
| Cycle Time (sec) | 26 |
| Dimensions LxWxH (mm) | 845 x 745 x 1965 |
| Weight (kg) | 310 |
| Filling Opening WxH (mm) | 700 x 460 |
| Filling Height (mm) | 755 |
| Chamber Height (mm) | 1100 |
| Stroke (mm) | 550 |
| Bale Size WxDxH (mm) | 700 x 500 x 650 |
| Bale Weight Cardboard (kg) | 30–50 |
| Bale Weight Plastic (kg) | 40–60 |
About Our Partner Bramidan
Bramidan balers are recognised throughout Europe as one of the best waste and paper baler solutions for their immaculate design and quality. We stock a broad range of Vertical Balers to compact and bale waste, cardboard, plastic and polystyrene.
