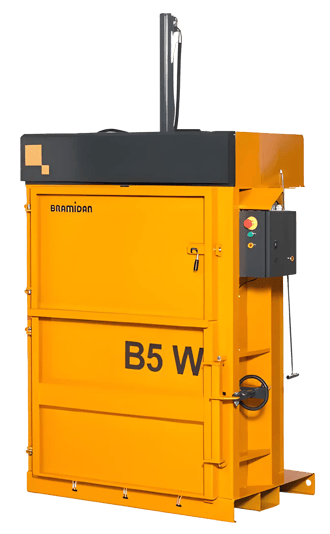

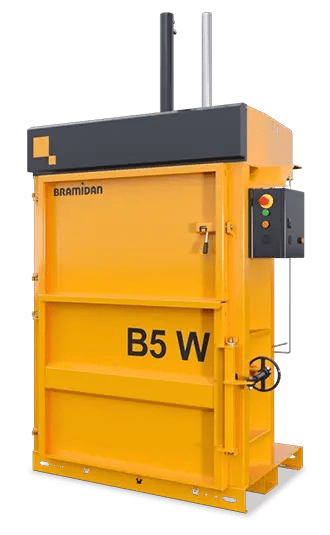

Bramidan Vertical Baler B5W | Wastech Engineering

Overview

The B5 W is a machine which has been constructed to service users with smaller amounts of waste, but who still need a machine to handle bulky materials.

The machine is characterized by a very wide filling opening of 1 metre, which is an advantage when handling larger cardboard boxes. The chamber is equipped with rows of efficient barbs, which keep the material back and ensure optimum filling.

Large filling opening. Advantage when handling larger boxes.
Easy to replace Strap Rolls. They are placed in front.
Automatic ejection. Two-hand operation ejects the bale.

Waste Types

Cardboard, Plastic Foil, Paper

Press Force

Waste Volume

Small

Feed Opening

W1000xH500mm

Bale Size

W1000xD700xH800mm

Bale Weight

80-130kg

Filling the B5 Wide baler chamber with cardboard material.

Loading plastic waste into the B5 Wide baler chamber.

Tying a finished plastic bale in the B5 Wide baler.

Ejecting a compacted plastic bale from the B5 Wide baler.

Ejecting a compacted cardboard bale from the B5 Wide baler.

Removing a finished plastic bale from the B5 Wide baler.

Pulling a finished cardboard bale from the B5 Wide baler.

Technical Specifications

Specification	Value
Press Force (t)	5
Power Supply	240V 10A
Motor (kW)	1.1
Noise Level (dB)	65-68
Cycle Time (sec)	33

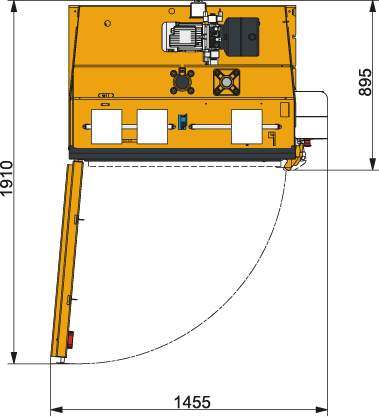

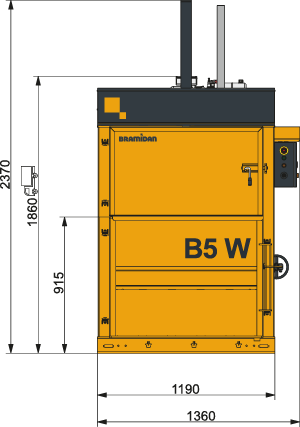

Dimensions WxDxH (mm)	1355 x 895 x 2370
Weight (kg)	600
Filling Opening WxH (mm)	1000 x 500
Filling Height (mm)	755
Chamber Height (mm)	1305
Stroke (mm)	750
Bale Size WxDxH (mm)	1000 x 700 x 800
Bale Weight Cardboard (kg)	80-110
Bale Weight Plastic (kg)	90-130
