Overview

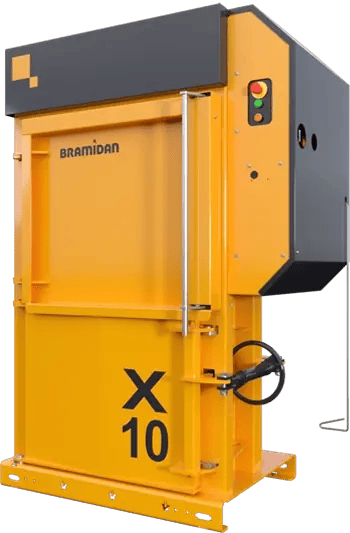

The X10 is suitable for smaller retail shops, industrial companies or other companies, who need a compact baler with high capacity. The compact design makes it ideal where space is limited.

Equipped with cross cylinders, this machine offers superior press force but also a very low overall height. The X10 has a relatively large filling opening, making the daily operation as easy as possible.

Easy Installation. Very low overall height.

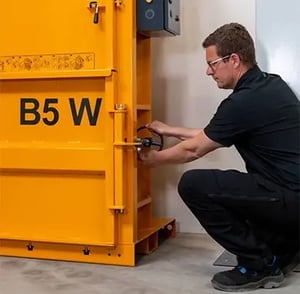

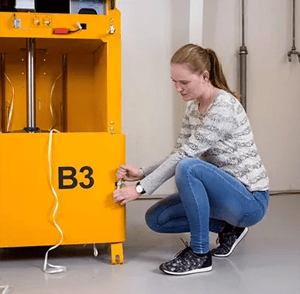

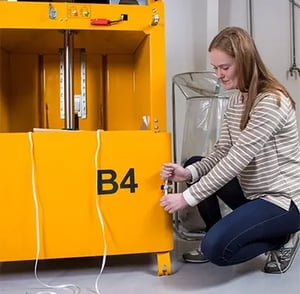

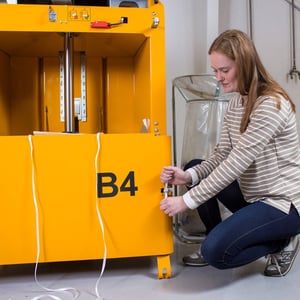

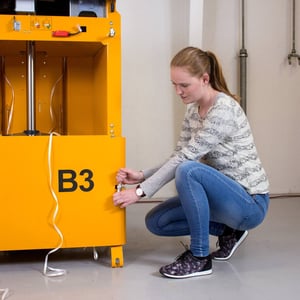

Safe/Steady Door Opening. Using a strong threaded spindle.
Automatic Ejection. Two-hand operation ejects the Bale.

Waste Types

Cardboard, plastic foil, paper, PET bottles, alu cans, tin cans, hard plastic, textile, EPS.

Press Force

10T

Waste Volume

Small

Feed Opening

W800xH610mm

Bale Size

W800xD600xH600mm

Bale Weight

70-110kg

Filling the X10 baler chamber with cardboard material.

Loading plastic waste into the X10 baler chamber.

Cross-cylinder design shown while compacting plastic in the X10 baler.

Cross-cylinder configuration for efficient cardboard compaction.

Two-hand operation for safe bale ejection on the X10 baler.

Ejecting a compacted plastic bale from the X10 baler.

Pulling a finished cardboard bale from the X10 baler.

Removing a finished plastic bale from the X10 baler.

Technical Specifications

Specification	Value
Press Force (t)	10
Power Supply	3 x 400V 50Hz 16A
Motor (kW)	4.0
Noise Level (dB)	59-60
Cycle Time (sec)	18

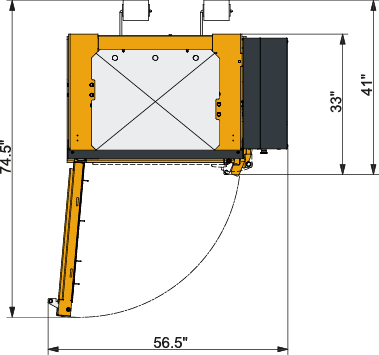

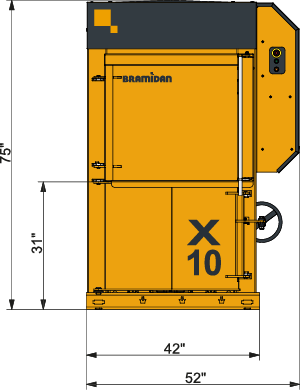

Dimensions WxDxH (mm)	1315 x 1040 x 1900
Weight (kg)	665
Filling Opening WxH (mm)	800 x 610
Filling Height (mm)	785
Chamber Height (mm)	1295
Stroke (mm)	845
Bale Size WxDxH (mm)	800 x 600 x 600
Bale Weight Cardboard (kg)	70-90
Bale Weight Plastic (kg)	80-110
