Overview

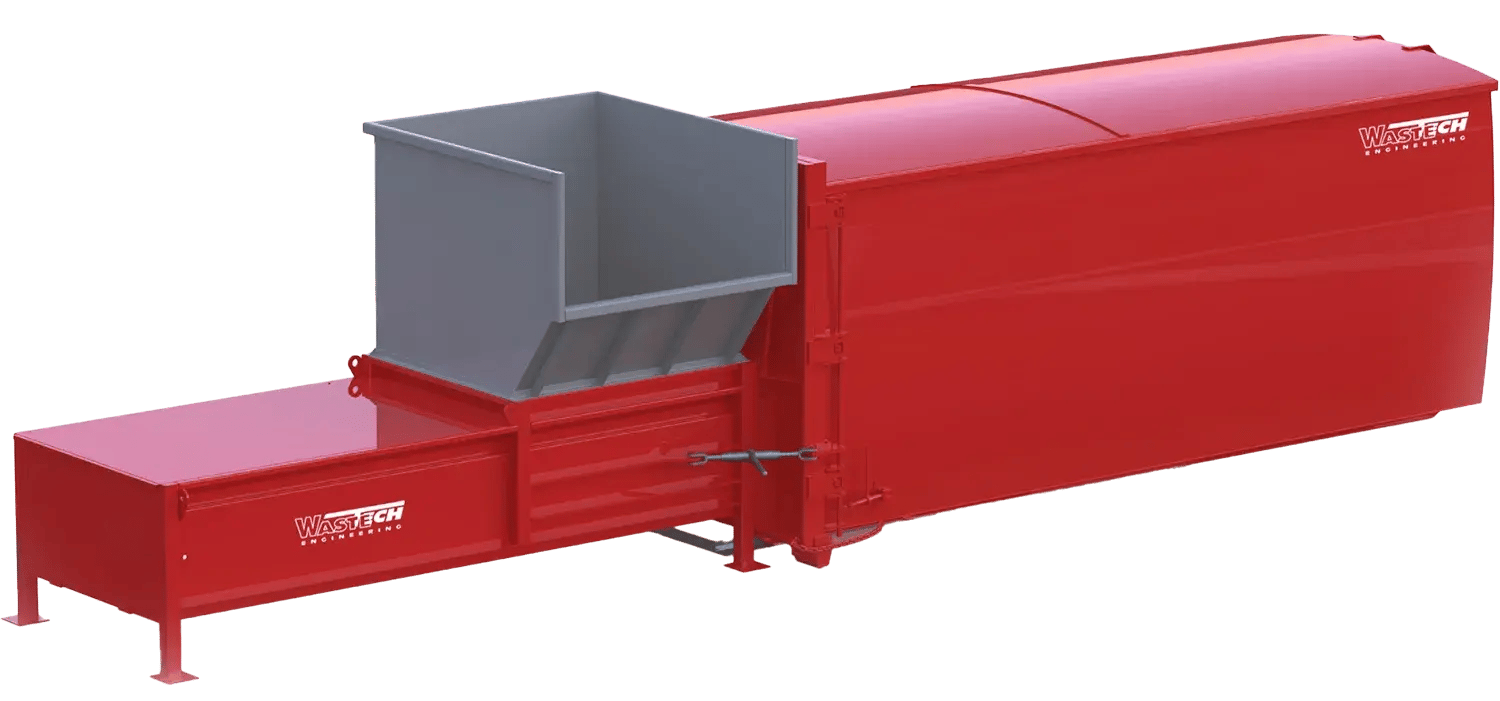

The S2000 Stationary Compactor provides compaction and containment of large volumes of general waste, paper, cardboard and other recyclables.

The S2000 can be designed for hand, bin lifter, tippler bin and chute loading. The superior compaction forces provide high payloads to reduce your carbon footprint. When full, the body or container is removed for emptying.

Reduced cost to transport your waste and recycling off site.
Reduced manual handling saving the cost of labour required to deal with the waste and recycling on site.
Safer manual handling reducing lost time due to injury.
Ability to handle your specific waste type and handling/loading method.
Robust Construction ensures an extended equipment lifespan reducing the need for unforseen upgrades.
Increased participation in a recycling program helping to reduce the organisations environmental impact.
Increased time available for staff to concentrate on other activities within the business.

Compatible with compactor bin sizes from 20m³ to 40m³.

Engineered to meet high safety standards that allow for hand loading, as well as bin lifter, tippler and chute loading capability.

Hydraulic power pack and electrical controls are contained within a protective enclosure on the rear deck of the compactor.

Suitable for Paper, Cardboard, General Waste, Plastic and Other Recyclables.

Technical Specifications

Specification	Value
Clear Top Opening (W x L)	1500mm x 1650mm
Machine Capacity	110 m³/hr or 142 m³/hr
Cycle Time	55 or 43 seconds
Motor Size	7.5 kW or 11 kW
Chamber Volume	2.2 m³
Swept Volume	1.7 m³
Hydraulic Cylinder Stroke	2000 mm
Hydraulic Cylinder Size	130 mm Bore, 90 mm Rod
Container Penetration	350 mm
Discharge Opening	1500mm W x 770mm H
Maximum Compaction Force	225 kN
Power Required	415V 20A or 415V 32A
Hydraulic Pump Flow	27 L/min or 36 L/min
Pack Blade Face Size (W x H)	1500 x 560 mm
Weight	2540 kg
Operating Pressure	150 bar (max 200)
Overall Dimensions (L x W x H)	4665mm x 1800mm x 1340mm
