Stationary

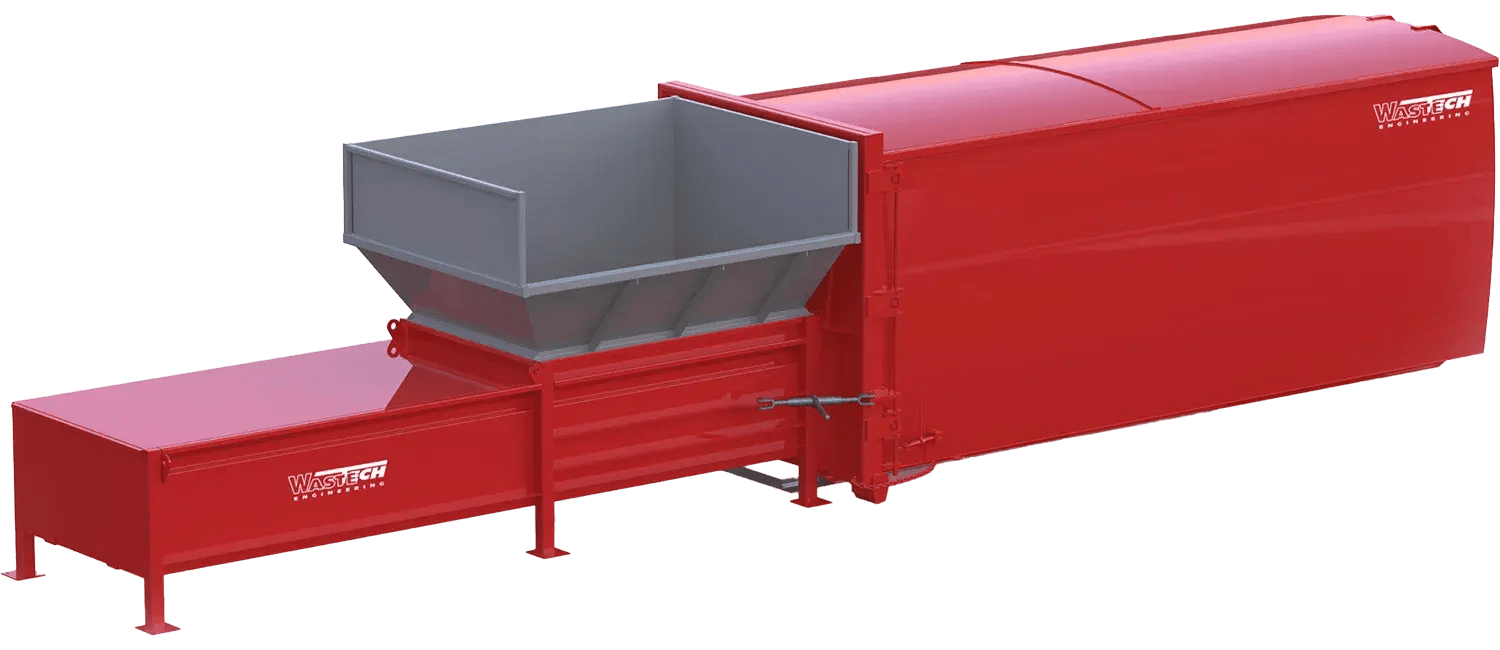

S3000 COMPACTOR

Overview
The S3000 Stationary Compactor provides compaction and containment of very large volumes of general waste, paper, cardboard and other recyclables.
The S3000 can be designed for hand, bin lifter, tippler bin and chute loading. The superior compaction forces provide high payloads to reduce your carbon footprint. When full, the body or container is removed for emptying.
- Reduced cost to transport your waste and recycling off site.
- Reduced manual handling saving the cost of labour required to deal with the waste and recycling on site.
- Safer manual handling reducing lost time due to injury.
- Ability to handle your specific waste type and handling/loading method.
- Robust Construction ensures an extended equipment lifespan reducing the need for unforseen upgrades.
- Increased participation in a recycling program helping to reduce the organisations environmental impact.
- Increased time available for staff to concentrate on other activities within the business.
Key Features
Compatible with compactor bin sizes from 20m3 to 40m3.
Engineered to meet high safety standards that allow for hand loading, as well as bin lifter, tippler and chute loading capability.
Hydraulic power pack and electrical controls are contained within a protective enclosure on the rear deck of the compactor.
Suitable for Paper, Cardboard, General Waste, Plastic and Other Recyclables.
Technical Specifications
| Specification | Value |
|---|---|
| Clear Top Opening (W x L) | 1500mm x 2150mm |
| Machine Capacity | 110 or 142 m³/hr |
| Cycle Time | 70 or 55 seconds |
| Motor Size | 7.5kW or 11kW |
| Chamber Volume | 3.0 m³ |
| Swept Volume | 1.9 m³ |
| Hydraulic Cylinder Stroke | 2560 mm |
| Hydraulic Cylinder Size | 130 Bore, 90 Rod (mm) |
| Container Penetration | 350 mm |
| Discharge Opening | 1500mm Wide x 770mm High |
| Maximum Compaction Force | 225 kN |
| Power Required | 415V 20A |
| Hydraulic Pump Flow | 27 L/min – 36 L/min |
| Pack Blade Face Size (W x H) | 1500 x 560 mm |
| Weight | 3080 kgs |
| Operating Pressure | 150 bar (max 200) |
| Overall Dimensions (L x W x H) | 5680mm x 1800mm x 1340mm |
