Stationary

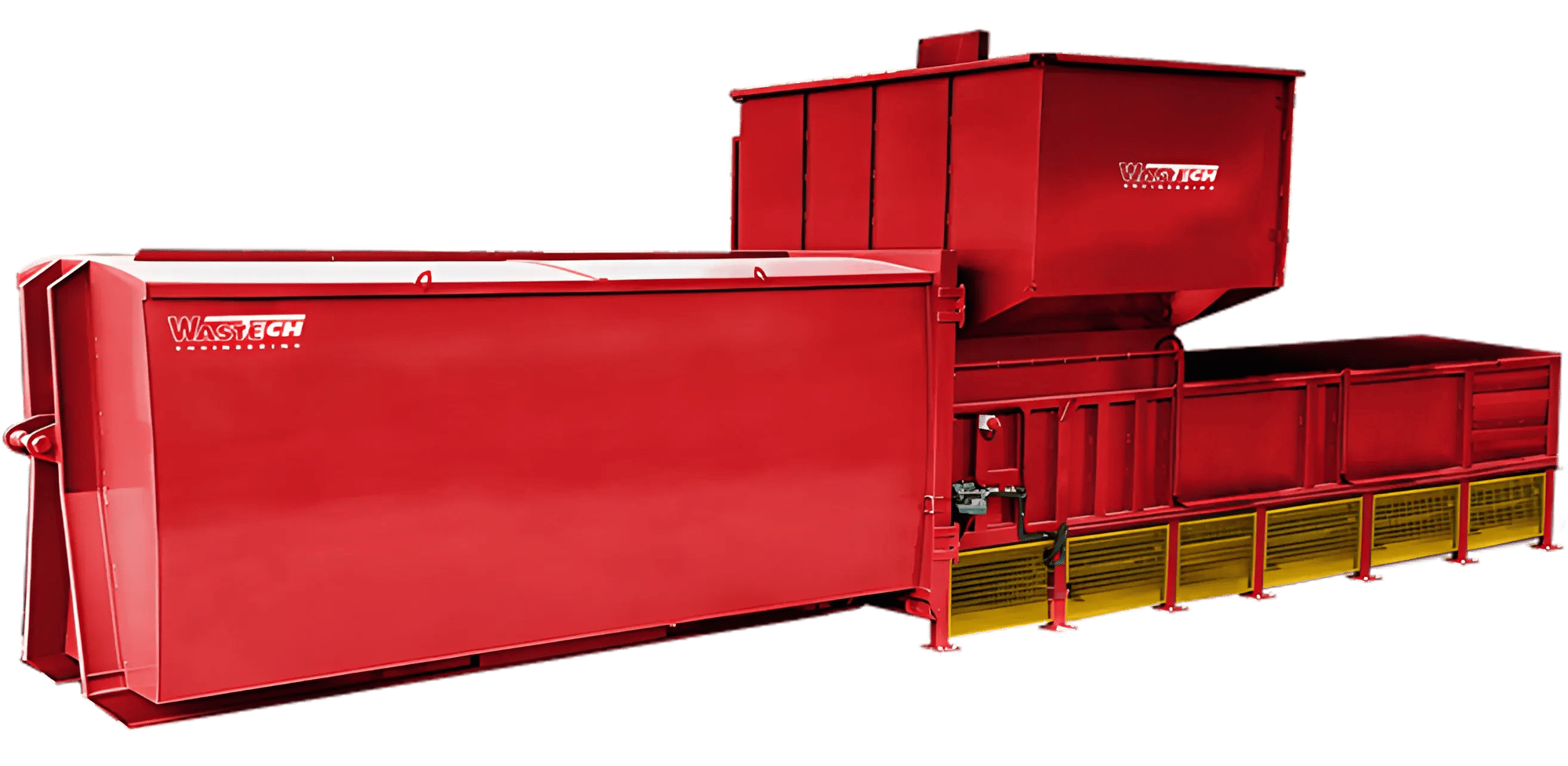

S4000 COMPACTOR

Overview
This tough compactor for small to medium sized transfer station application is designed to cater for through-put volume of 240m³/hour. Compatible with all feed types including push pit, moving floor, conveyor and front-end loader.
Constructed from high tensile steel the S4000 is built to withstand high compaction force so you gain maximum payloads and reduced freight cost. With a clear top opening and chamber volume of 4m³ the S4000 can accept large product loads.
Compatible with 31-60m³ containers and transfer trailers the S4000 comes with its own stand alone hydraulic power pack and oil cooler.
Key Features
Suitable for 31m3 to 60m3 containers and transfer trailers.
Comes with its own stand alone hydraulic power pack and oil cooler.
Functional with all feed types including push pit, moving floor, conveyor and front-end loader.
Technical Specifications
| Specification | Value |
|---|---|
| Clear Top Opening (W x L) | 1500mm x 2150mm |
| Machine Capacity | 110 or 142 m³/hr |
| Cycle Time | 70 or 55 seconds |
| Motor Size | 7.5kW or 11kW |
| Chamber Volume | 3.0 m³ |
| Swept Volume | 1.9 m³ |
| Hydraulic Cylinder Stroke | 2560 mm |
| Hydraulic Cylinder Size | 130 Bore, 90 Rod (mm) |
| Container Penetration | 350 mm |
| Discharge Opening | 1500mm Wide x 770mm High |
| Maximum Compaction Force | 225 kN |
| Power Required | 415V 20A |
| Hydraulic Pump Flow | 27 L/min – 36 L/min |
| Pack Blade Face Size (W x H) | 1500 x 560 mm |
| Weight | 3080 kgs |
| Operating Pressure | 150 bar (max 200) |
| Overall Dimensions (L x W x H) | 5680mm x 1800mm x 1340mm |
