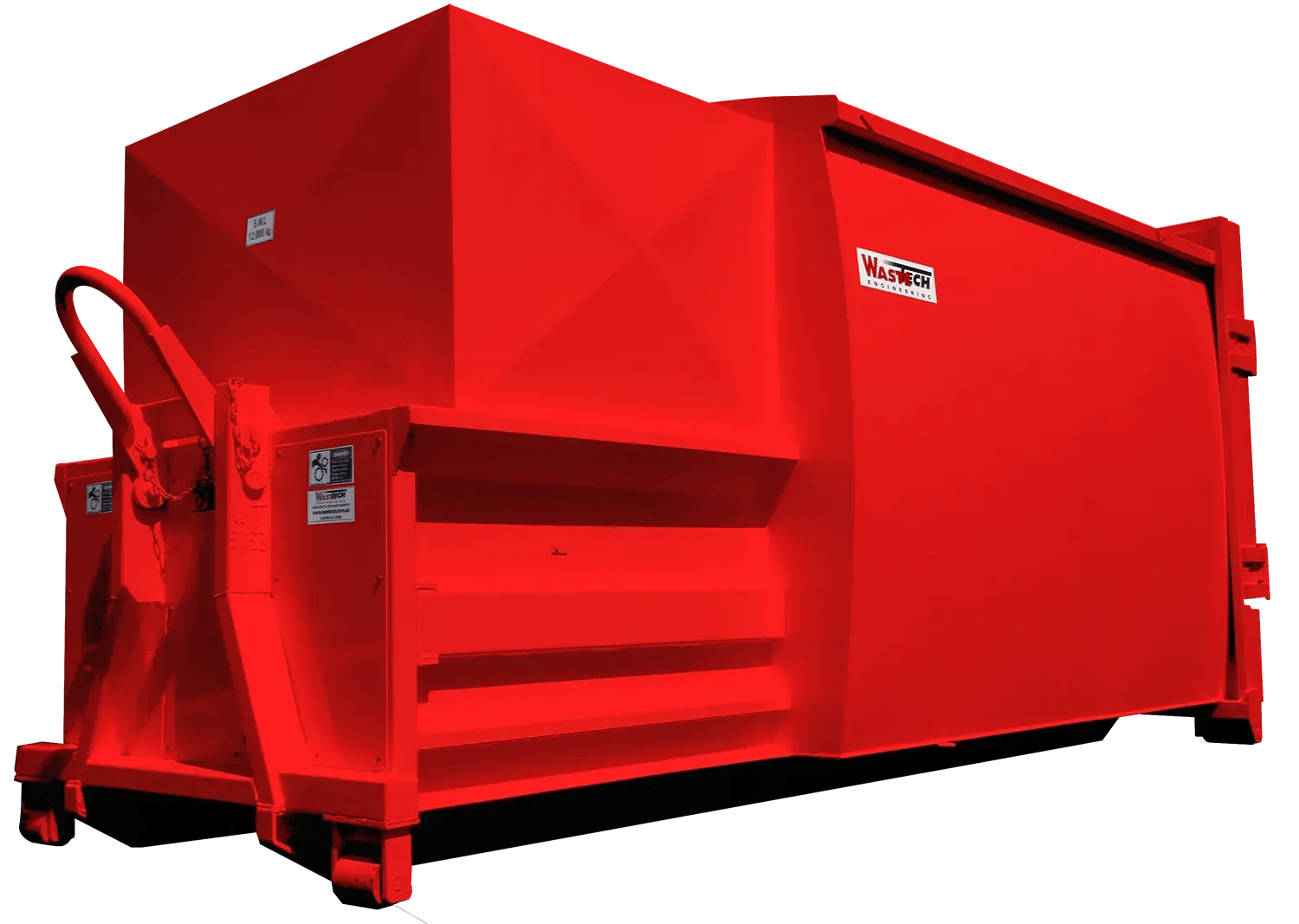

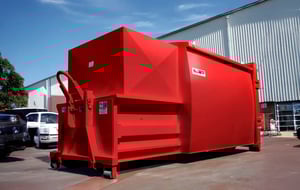

BLADE COMPACTOR

Overview
The Blade Transportable Compactor is specifically designed for heavy and rapid loading of wet and food type wastes.
The compaction head is joined directly to the container to ensure wet waste is completely contained. The Compactor can be designed for hand, bin lifter, tippler bin and chute loading. When full, the entire unit is removed from site for emptying.
- Reduced cost to transport your waste and recycling off site.
- Reduced manual handling saving the cost of labour required to deal with the waste and recycling on site.
- Safer manual handling reducing lost time due to injury.
- Ability to handle your specific waste type and handling/loading method.
- Robust Construction ensures an extended equipment lifespan reducing the need for unforeseen upgrades.
- Increased participation in a recycling program helping to reduce the organisations environmental impact.
- Increased time available for staff to concentrate on other activities within the business.
Key Features
Designed for hand, bin lifter, tippler and chute loading.
Enhanced safety features and available in different sizes ranging from 11 - 25 metres.
Technical Specifications
| Specification | Value |
|---|---|
| Clear Top Opening (W x L) | 1500 mm x 875 mm |
| Machine Capacity | 110 m³/hr |
| Cycle Time | 40 s |
| Motor Size | 5.5 kW |
| Chamber Volume | 1.3 m³ |
| Swept Volume | 1.0 m³ |
| Hydraulic Cylinder Stroke | 820 mm |
| Hydraulic Cylinder Size | 100 Bore, 65 Rod (mm) x 2 |
| Container Penetration | 300 mm |
| Discharge Opening | 1500 mm W x 770 mm H |
| Maximum Compaction Force | 225 kN |
| Power Required | 415V 20A |
| Hydraulic Pump Flow | 27 L/min |
| Pack Blade Face Size (W x H) | 1500 x 560 mm |
| Weight | 3500 kg |

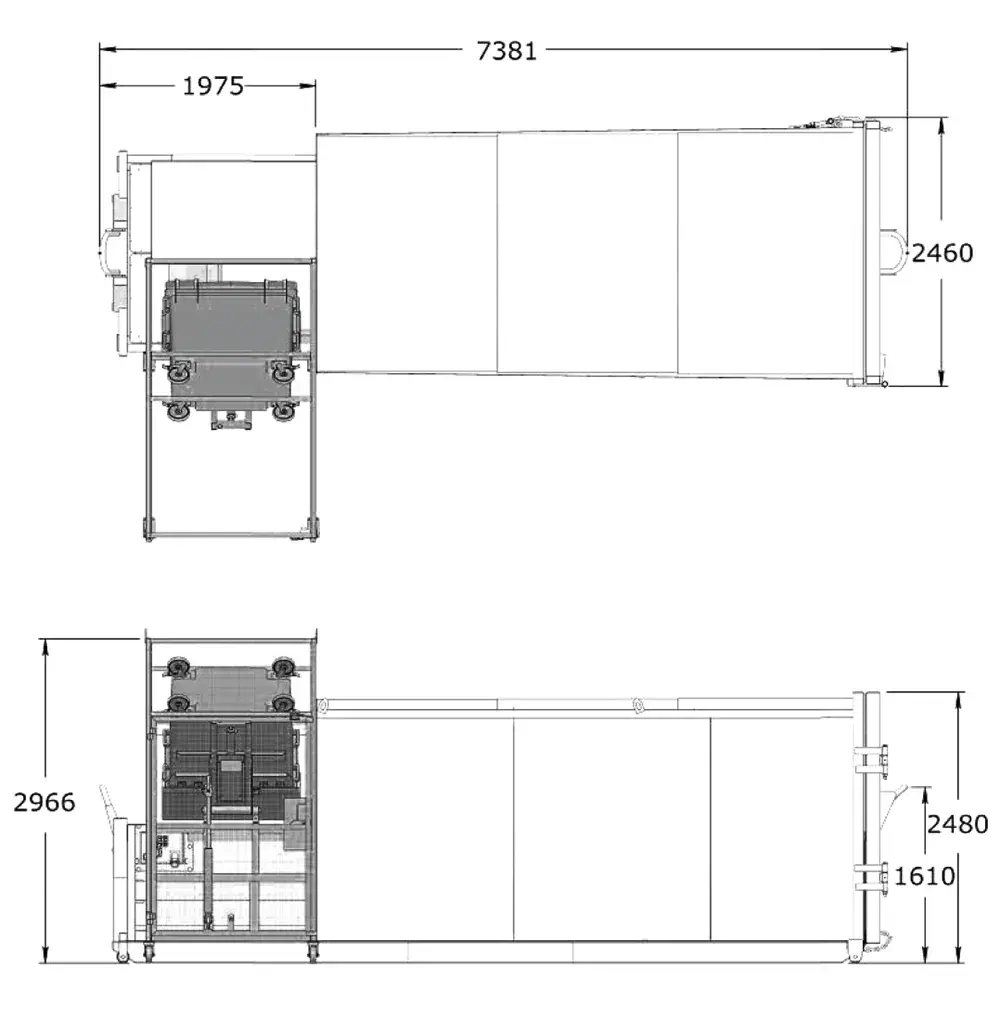

Unit Dimensions
