MZ3 Cardboard Feeder

Prevents cardboard jams

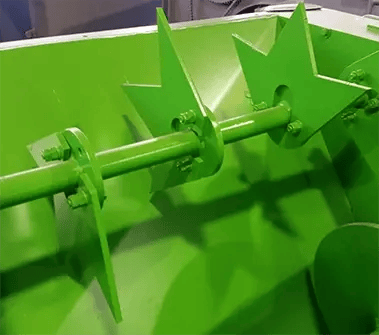

Continuous workflow to auger

Avoids manual removal of large sheets

Sized for fast, consistent infeed

30–180 sec control

Low operational noise at 1 m

Technical Specifications

Specification	Value
Product	Presto MZ3 Cardboard Feeder
Torque	9,550 Nm
Dimensions (with 31 m³ bin)	2820 W × 8165 L × 2700 H mm
Clear Top Opening (W × L)	1380 × 1220 mm
Throughput	70 m³/hr
Cycle Time	Adjustable 30–180 sec
Operational Noise	64–66 dB (at 1 m)
Power Required	415 V, 63 A (motor start circuit breaker)
Electric Motor Size	0.75 kW (PZZ) & 15 kW (SPN)
Expected Bin Weights (31 m³)	Cardboard: 6.0–8.0 t
