PZZ CARDBOARD CRUSHER
Overview

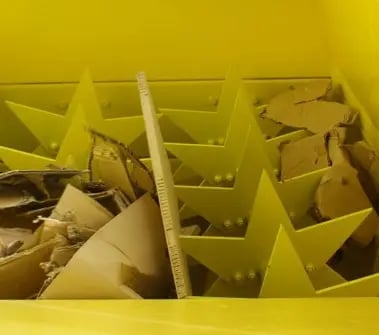

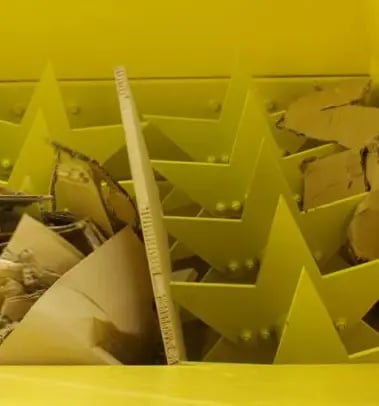

The Presto PZZ Cardboard Crusher pre-crushes large cartons and cardboard pallets so your compactor can process more material, faster. Twin wear-resistant feeder shafts collapse the integral shape of cardboard, feeding a more uniform stream into downstream equipment. Pairing the PZZ with a Presto High Force (SPN) Auger Compactor can drastically increase volume throughput and help achieve up to double the bin weights versus conventional compaction, reducing transport trips.
Key Features
Pre-crush
Collapses bulky cartons & cardboard pallets
Twin shafts

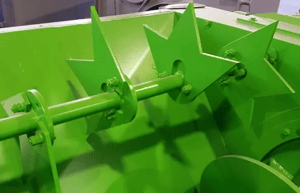

Two wear-resistant feeder shafts for consistent feed
Throughput
Drastically increases compactor volume throughput
Integration
Optimised to pair with Presto SPN High Force Auger
Heavier bins
Combination system can deliver up to 2× bin weights
Reliable build
Robust steel construction for long service life
Technical Specifications
| Specification | Value |
|---|---|
| Product | Presto PZZ Cardboard Crusher |
| Primary Use | Pre-crushing large cartons & cardboard pallets prior to compaction |
| Mechanism | Two revolving, wear-resistant feeder shafts |
| Downstream Pairing | Presto SPN High Force Auger Compactor (recommended) |
| Performance Benefit | Drastically increases compactor throughput; system can achieve up to 2× bin weights* |
| Construction | Robust steel build for long service life |
| Material Stream | Cardboard (cartons) & cardboard pallets |
| Outcome | Improved feed and heavier, cleaner-emptying loads when paired with SPN Auger |
| Torque | 9,550 Nm |
| Dimensions (with 31 m³ bin) | 2820 W × 7945 L × 2700 H mm |
| Throughput | 70 m³/hr |
| Clear Top Opening (W × L) | 1380 × 1220 mm |
| Operational Noise | <65 dB(A) |
| Power Required | 415 V, 63 A (motor start circuit breaker) |
| Electric Motor Size | 2.2 + 4.0 kW (PZZ) & 15 kW (SPN) |
| Cycle Time | Continuous |
About Our Partner Presto

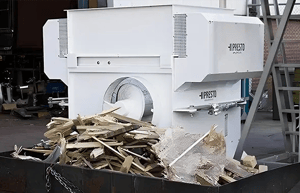

Presto compactors and crushers are recognised across Europe for their high-force auger technology, robust German engineering, and long service life. We stock a broad range of Presto solutions, including auger compactors, cardboard & timber pallet crushers, and forced-feed systems to pre-crush and compact cardboard, plastic, PET, and timber, cutting volumes and transport trips.
The robust steel construction and quality of the PZZ ensures a long service life with unmatched performance reliability.
