Timber Pallet Crusher | Wastech Engineering

Breaks pallets/timber for easy compaction

Up to 360 pallets/hr

Over 6.5 t in a 31 m³ bin

Handles ~215 pallets in 7.3 × 2.6 m area

Robust design for reliability

<65 dB(A) operational noise

Technical Specifications

Specification	Value

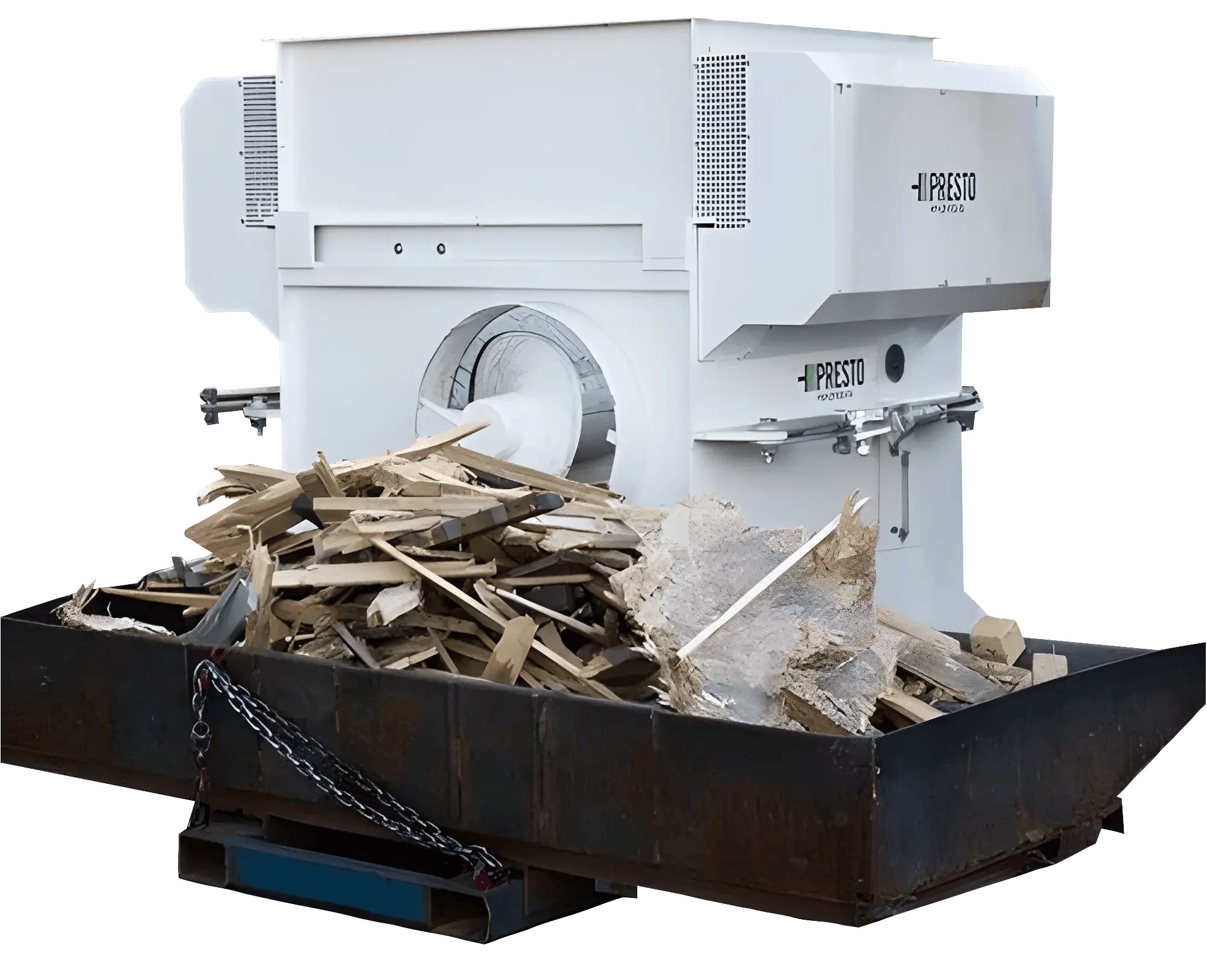

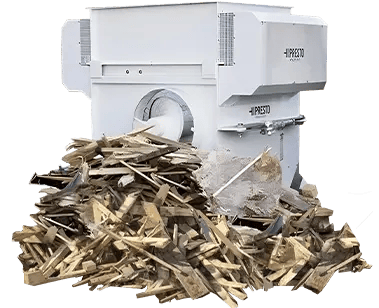

Product	Presto Timber Pallet Crusher
Throughput	Up to 360 pallets/hour
Expected Bin Weight (31 m³)	4–5 tonnes (wooden pallets)
Torque	9,550 Nm
Dimensions (with 31 m³ bin)	2820 W × 7965 L × 2700 H mm
Clear Top Opening (W × L)	1380 × 1220 mm
Operational Noise	<65 dB(A)
Electric Motor Size	6.5 kW (PZZ) & 15 kW (SPN)
Cycle Time	Continuous
Power Required	415 V, 63 A (motor start circuit breaker)
