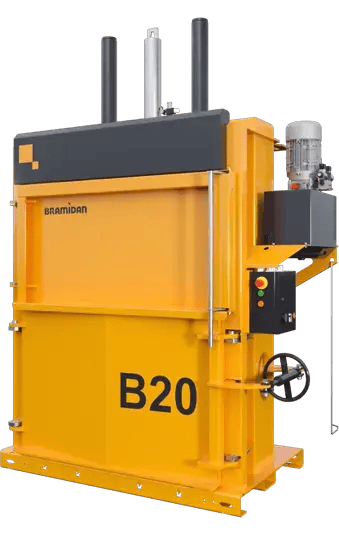

B20 Baler

B20 Baler

Large scale compression.

The B20 is a highly flexible machine and can be used in many different situations eg. larger retail shops, stores and different industries.

This baler has a wide filling opening for handling larger boxes, and the chamber is provided with rows of barbs, which keep the waste material down, even very expandable materials.

The B20 is easy to operate and the traditional construction ensures low maintenance costs.

  • Large filling opening. Advantage when handling larger boxes.
  • Easy to replace Strap Rolls. They are placed in front.
  • Automatic ejection. Two-hand operation ejects the bale.


Strap rolls are easy to replace in front of the machine.

An efficient and silent ejecting system ensures easy handling of the compressed bale.

All balers are equipped with easily understood pictograms.

  • A man putting cardboard box in the baler

Non-Standard Door Options

Vertical Door

A vertical door takes up little space and facilitates loading from both sides.

Technical Specifications

Press Force (t)20
Power Supply3 x 400V 50Hz 16A
Motor (kW)4.1
Noise Level (dB)62-64
Cycle Time (sec)21/33

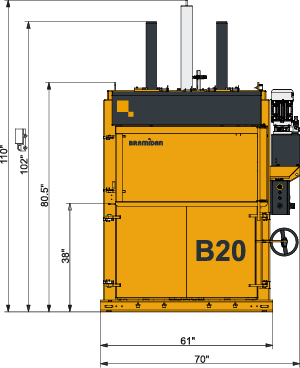

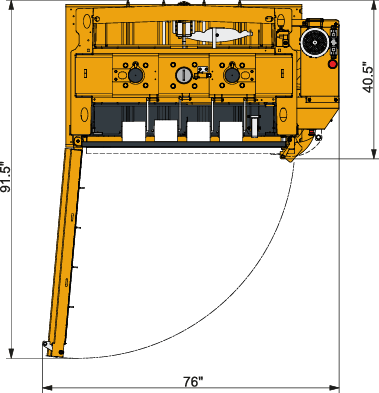

Dimensions WxDxH (mm)1765 x 1025 x 2770
Weight (kg)1240
Filling Opening WxH (mm)1200 x 550
Filling Height (mm)965
Chamber Height (mm)1410
Stroke (mm)750
Bale Size WxDxH (mm)1200 x 800 x 850
Bale Weight Cardboard (kg)200-250
Bale Weight Plastic (kg)250-300
