Bramidan Vertical Baler B20 | Wastech Engineering

Overview

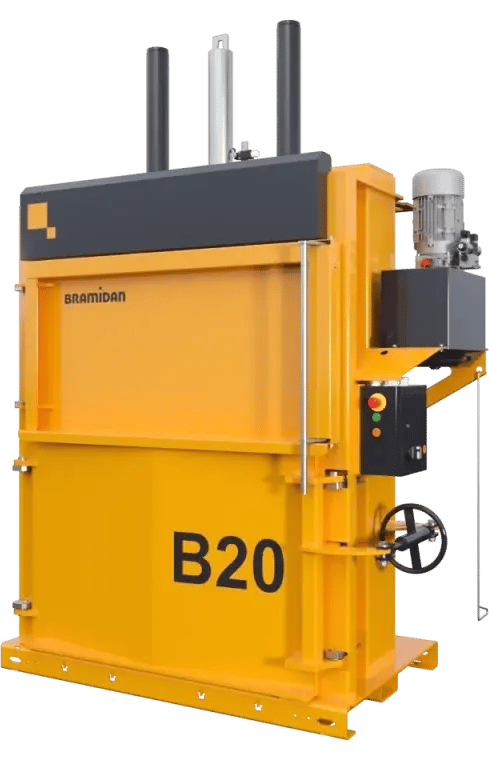

The B20 is a highly flexible machine and can be used in many different situations eg. larger retail shops, stores and different industries.

This baler has a wide filling opening for handling larger boxes, and the chamber is provided with rows of barbs, which keep the waste material down, even very expandable materials.

The B20 is easy to operate and the traditional construction ensures low maintenance costs.

Large filling opening. Advantage when handling larger boxes.
Easy to replace Strap Rolls. They are placed in front.
Automatic ejection. Two-hand operation ejects the bale.

Waste Types

Cardboard, Plastic Foil, Paper

Press Force

20T

Waste Volume

Medium

Feed Opening

W1200xH480mm

Bale Size

W1200xD800xH800mm

Bale Weight

200-300kg

Finished cardboard bale next to machine.

Technical Specifications

Specification	Value
Press Force (t)	20
Power Supply	3 x 400V 50Hz 16A
Motor (kW)	4.1
Noise Level (dB)	62-64
Cycle Time (sec)	21/33
Dimensions WxDxH (mm)	1765 x 1025 x 2770
Weight (kg)	1240
Filling Opening WxH (mm)	1200 x 550
Filling Height (mm)	965
Chamber Height (mm)	1410
Stroke (mm)	750
Bale Size WxDxH (mm)	1200 x 800 x 850
Bale Weight Cardboard (kg)	200-250
Bale Weight Plastic (kg)	250-300
