Overview

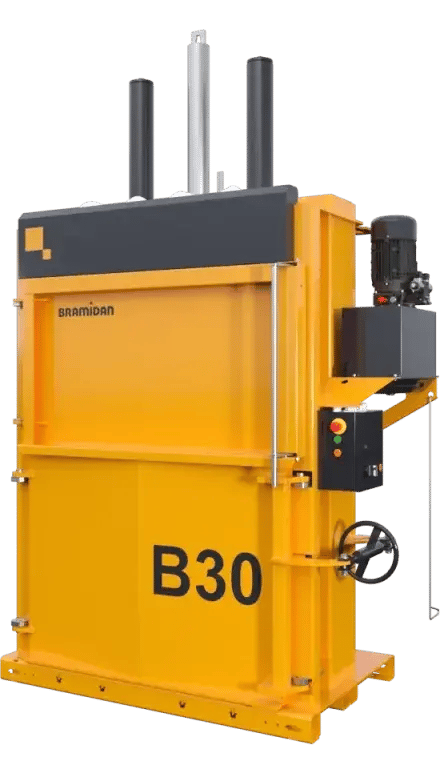

The B30 is a flexible machine and can be used for waste handling in larger retail shops and different industrial companies.

The wide filling opening makes it easy to fill in larger boxes and other bulky waste. Rows of efficient barbs inside the chamber keep down the waste material, even very expandable materials like plastic.

The B30 is easy to operate and has a full-indicator, which tells you when the chamber is full and ready for baling.

Large filling opening. Advantage when handling larger boxes.
Easy to replace Strap Rolls. They are placed in front.
Automatic ejection. Two-hand operation ejects the bale.

Waste Types

Cardboard, plastic foil, paper

Press Force

30T

Waste Volume

Medium

Feed Opening

W1200xH560mm

Bale Size

W1200xD800xH950mm

Bale Weight

280-450kg

Load plastic waste into the B30 baler’s spacious chamber for compaction.

View of cross-cylinder arrangement during plastic bale processing.

View of cross-cylinder arrangement during cardboard bale processing.

Activating the ejection system to release the completed plastic bale.

Removing the finished plastic bale from the baler.

Manually pulling out a completed cardboard bale.

Technical Specifications

Specification	Value
Press Force (t)	30
Power Supply	3 x 400V 50Hz 16A
Motor (kW)	4.0
Noise Level (dB)	62-64
Cycle Time (sec)	34/51
Dimensions WxDxH (mm)	1765 x 1025 x 2920
Weight (kg)	1560
Filling Opening WxH (mm)	1200 x 610
Filling Height (mm)	1055
Chamber Height (mm)	1560
Stroke (mm)	750
Bale Size WxDxH (mm)	1200 x 800 x 950
Bale Weight Cardboard (kg)	280-350
Bale Weight Plastic (kg)	350-450
