Bramidan Vertical Baler X25 Galv | Wastech Engineering

Overview

Bramidan has developed a range of galvanised balers especially designed for wet or demanding environments.

Model X25 Galv is very suitable for applications where there are no special hygienic requirements for stainless material, but where demands on surface treatment are so severe that an ordinary painted baler would have a very short lifetime.

Can also be placed outside – our unique range of X-series galvanised balers are also designed to withstand anything the weather throws at them.

Noiseless. Due to a unique hydraulic system.
Safe/Steady Door Opening. Using a strong threaded spindle.
Easy Installation. Very low overall height.

Waste Types

Cardboard, plastic foil, paper, PET bottles, alu cans, tin cans, hard plastic, liquid, EPS

Press Force

25T

Waste Volume

Medium

Feed Opening

W1090xH530mm

Bale Size

W1200xD800xH800mm

Bale Weight

200-350kg

Load cardboard into the baler’s filling chamber.

The press plate moves down to compact the cardboard.

Use the two-hand control system to safely start bale ejection.

The machine ejects the finished cardboard bale.

Remove the bale from the front of the machine.

Technical Specifications

Specification	Value
Press Force (t)	25
Power Supply	3 x 400V 50Hz 16A
Motor (kW)	4.0
Noise Level (dB)	59-60
Cycle Time (sec)	23

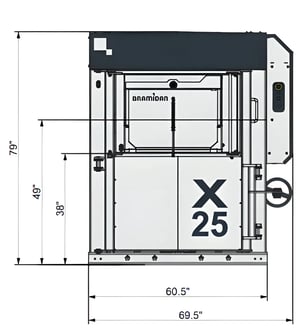

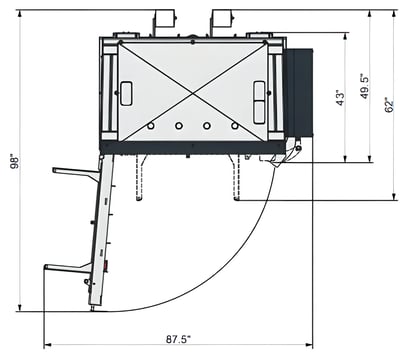

Dimensions WxDxH (mm)	1745 x 1260 x 1995
Weight (kg)	1410
Filling Opening WxH (mm)	1090 x 530
Filling Height (mm)	955
Chamber Height (mm)	1380
Stroke (mm)	950
Bale Size WxDxH (mm)	1200 x 800 x 800
Bale Weight Cardboard (kg)	200-300
Bale Weight Plastic (kg)	250-350
