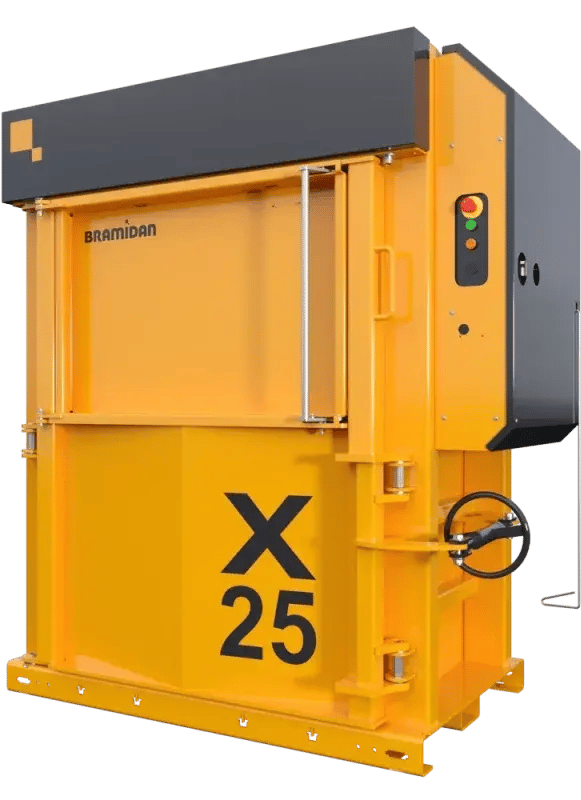

Bramidan Vertical Baler X25 | Wastech Engineering

Overview

The X25 is equipped with cross cylinders, giving you stable compression and superior press force, together with a low overall height. Combined with a long stroke, a high bale weight can be achieved.

This cardboard and plastic baler is designed with easy servicing in mind, for example the positioning of the hydraulic unit mounted below the control panel on the side of the machine.

Noiseless. Due to a unique hydraulic system.
Safe/Steady Door Opening. Using a strong threaded spindle.
Easy Installation. Very low overall height.

Waste Types

Cardboard, plastic foil, paper, PET bottles, alu cans, tin cans, hard plastic, textile, EPS.

Press Force

25T

Waste Volume

Medium

Feed Opening

W1090xH530mm

Bale Size

W1200xD800xH800mm

Bale Weight

200-350kg

Insert flattened cardboard into the X25 baler’s large filling opening.

Place soft plastic waste into the baler for compaction.

View of cross-cylinder arrangement during cardboard bale processing.

View of cross-cylinder arrangement during plastic bale processing.

Operate the two-hand safety ejection system for secure bale removal.

Activate the bale ejection process to release the completed cardboard bale.

Initiate the ejection cycle for the completed plastic bale.

Manually pull the ejected cardboard bale clear of the machine.

Remove the plastic bale from the working area.

Technical Specifications

Specification	Value
Press Force (t)	25
Power Supply	3 x 400V 50Hz 16A
Motor (kW)	4.0
Noise Level (dB)	59-60
Cycle Time (sec)	23
Dimensions WxDxH (mm)	1745 x 1260 x 1995
Weight (kg)	1410
Filling Opening WxH (mm)	1090 x 530
Filling Height (mm)	955
Chamber Height (mm)	1380
Stroke (mm)	950
Bale Size WxDxH (mm)	1200 x 800 x 800
Bale Weight Cardboard (kg)	200-300
Bale Weight Plastic (kg)	250-350
