Overview

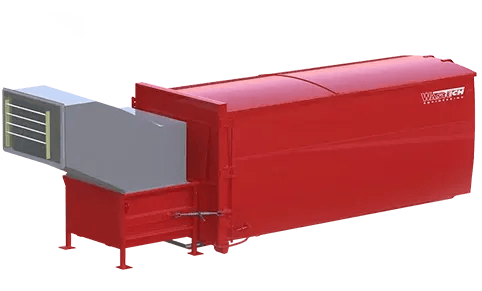

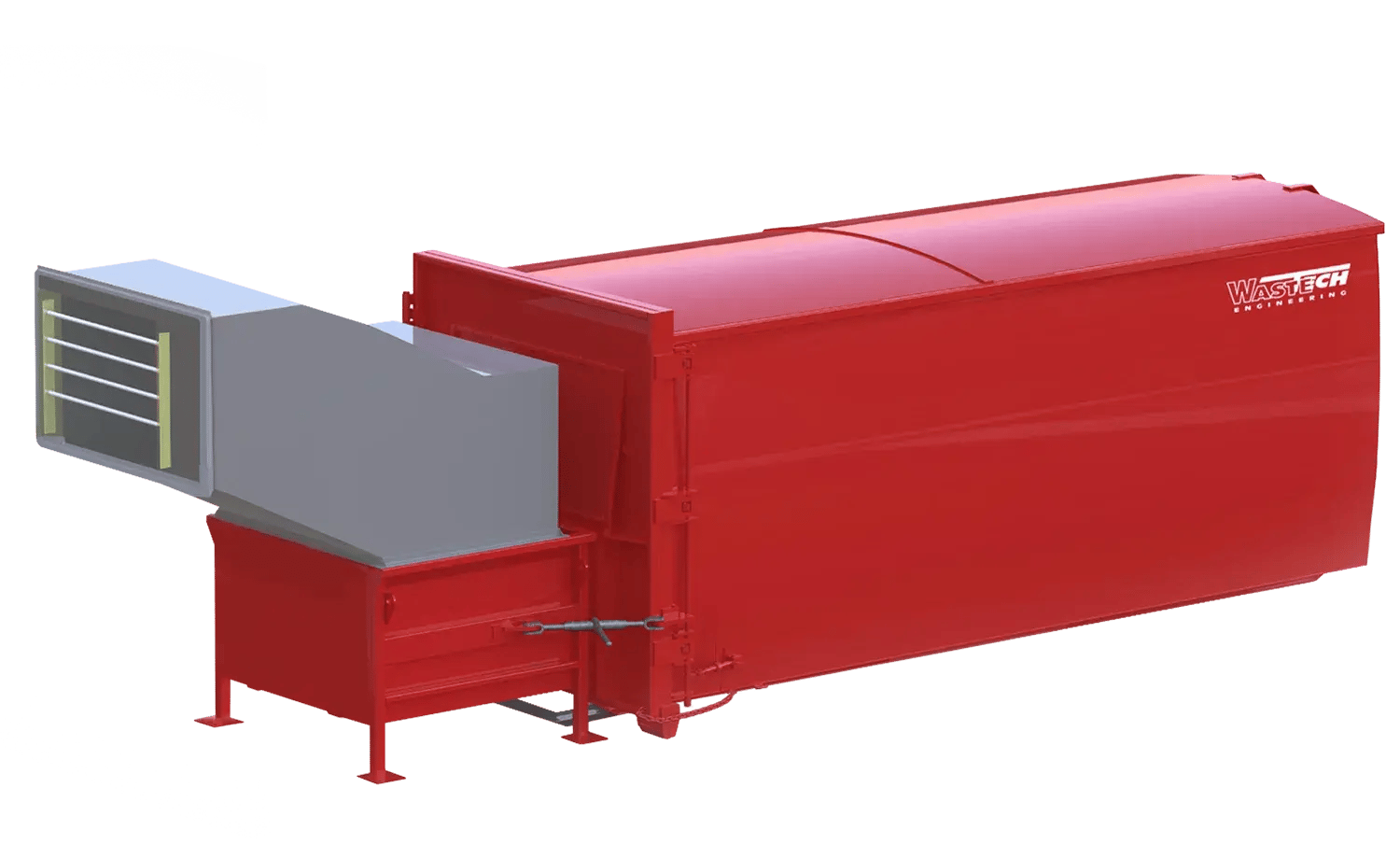

The S1000 Stationary Compactor is designed for the compaction of large cardboard boxes and general waste product loads. The S1000 is specifically designed for areas with limited space.

The S1000 is designed to have a very short head to suit tight room restraints. The power pack and control box are remote mounted to suit all site installations. The S1000 can be designed for hand, bin lifter, tippler bin and chute loading.

Reduced cost to transport your waste and recycling off site.
Reduced manual handling saving the cost of labour required to deal with the waste and recycling on site.
Safer manual handling reducing lost time due to injury.
Ability to handle your specific waste type and handling/loading method.
Robust Construction ensures an extended equipment lifespan reducing the need for unforeseen upgrades.
Increased participation in a recycling program helping to reduce the organisations environmental impact.
Increased time available for staff to concentrate on other activities within the business.

Built with a power pack and control box that is integrated into the compactor to suit all installations.

Compatible with compactor bin sizes from 11m³ to 40m³.

Designed for hand, bin lifter, tippler and chute loading.

Suitable for Paper, Cardboard, General Waste, Plastic and Other Recyclables.

Technical Specifications

Specification	Value
Clear Top Opening (W x L)	1500 mm x 875 mm
Machine Capacity	110 m³/hr
Cycle Time	40 s
Motor Size	5.5 kW
Chamber Volume	1.3 m³
Swept Volume	1.0 m³
Hydraulic Cylinder Stroke	820 mm
Hydraulic Cylinder Size	100 Bore, 65 Rod (mm) x 2
Container Penetration	300 mm
Discharge Opening	1500 mm W x 770 mm H
Maximum Compaction Force	225 kN
Power Required	415V 20A
Hydraulic Pump Flow	27 L/min
Pack Blade Face Size (W x H)	1500 x 560 mm
Weight	1700 kg
Operating Pressure	150 bar (max 200)
Overall Dimensions (L x W x H)	1800 mm x 1800 mm x 1370 mm
