Stationary

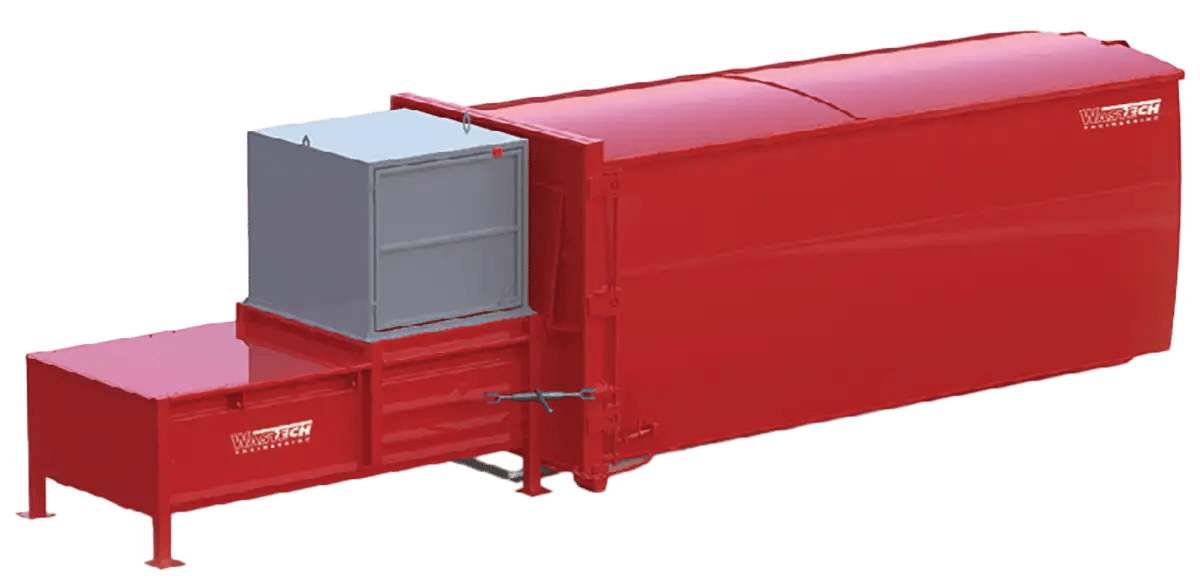

S1250 COMPACTOR
.webp?width=1200&height=585&name=S1250%20(1).webp)
Overview
The S1250 Stationary Compactor provides efficient compaction and containment of small to medium volumes of general waste, paper, cardboard and other recyclable materials.
This compact yet powerful compactor can be designed for hand, bin lifter, tippler bin and chute loading. When full, the body or container is easily removed for emptying. The superior compaction forces deliver high payloads, reducing your carbon footprint and transport costs.
- Reduced cost to transport your waste and recycling off site.
- Reduced manual handling saving the cost of labour required to deal with the waste and recycling on site.
- Safer manual handling reducing lost time due to injury.
- Ability to handle your specific waste type and handling/loading method.
- Robust construction ensures an extended equipment lifespan reducing the need for unforeseen upgrades.
- Increased participation in a recycling program helping to reduce the organisation’s environmental impact.
- Increased time available for staff to concentrate on other activities within the business.
Key Features
Engineered to meet high safety standards that allow for hand loading, as well as bin lifter, tippler and chute loading capability.
Compatible with compactor bin sizes from 11m3 to 40m3.
Hydraulic power pack and electrical controls are contained within a protective enclosure on the rear deck of the compactor
Suitable for Plastic, Paper, Cardboard, general Waste and Other Recyclables.
Technical Specifications
| Specification | Value |
|---|---|
| Clear Top Opening (W x L) | 1500 mm x 1180 mm |
| Machine Capacity | 110 m³/hr |
| Cycle Time | 43 s |
| Motor Size | 7.5 kW |
| Chamber Volume | 1.6 m³ |
| Swept Volume | 1.25 m³ |
| Hydraulic Cylinder Stroke | 1480 mm |
| Hydraulic Cylinder Size | 130 Bore mm, 90 Rod mm |
| Container Penetration | 350 mm |
| Discharge Opening | 1500 mm W x 770 mm H |
| Maximum Compaction Force | 225 kN |
| Power Required | 415V 20A |
| Hydraulic Pump Flow | 27 L/min |
| Pack Blade Face Size (W x H) | 1500 x 560 mm |
| Weight | 2100 kg |
| Operating Pressure | 150 bar (max 200) |
| Overall Dimensions (L x W x H) | 3240 mm x 1800 mm x 1340 mm |
