Overview

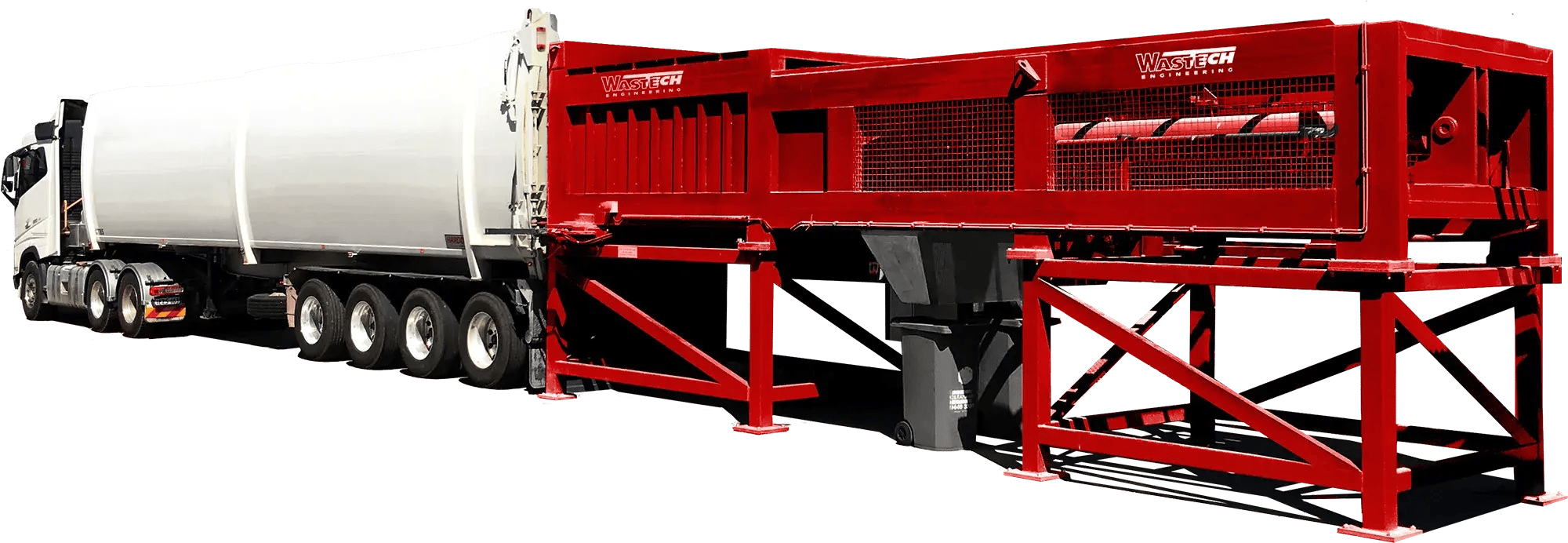

The S8000 transfer station compactor is the biggest compactor of its type on the market for medium to large sized transfer stations.

Designed to cater for a high through-put of up to 120 tonnes per hour. Compatible with all feed types including moving floor, push pit, conveyor and front-end loader.

Constructed from high tensile steel the S8000 is built to withstand high compaction force so you can gain maximum payloads and reduced freight cost. With its generous clear top opening and a chamber volume of 8.0m³ the S8000 can accept large product loads.

Compatible with 60m³ transfer trailers and comes with its own stand alone hydraulic power pack and oil cooler.

Suitable for 60m³ to 70m³ containers and transfer trailers.

Comes with its own stand alone hydraulic power pack and oil cooler.

Functional with all feed types including push pit, moving floor, conveyor and front-end loader.

Technical Specifications

Specification	Value
Clear Top Opening (W x L)	2000mm x 2800mm
Machine Capacity	Up to 480 m³/hr
Cycle Time	45 seconds
Motor Size	55 kW (120A)
Chamber Volume	8.0 m³
Swept Volume	6 m³
Hydraulic Cylinder Stroke	4545 mm
Hydraulic Cylinder Size	254 mm Bore Ø, Rod 177.8 mm Ø
Container Penetration	1500 mm
Discharge Opening	2000 mm Wide x 1434 mm High
Maximum Compaction Force	700 kN
Power Required	415V 120A
Hydraulic Pump Flow	442 L/min
Pack Blade Face Size (W x H)	2000 x 1060 mm
Weight	14,450 kg (approx.)
Operating Pressure	120 bar (max 150)

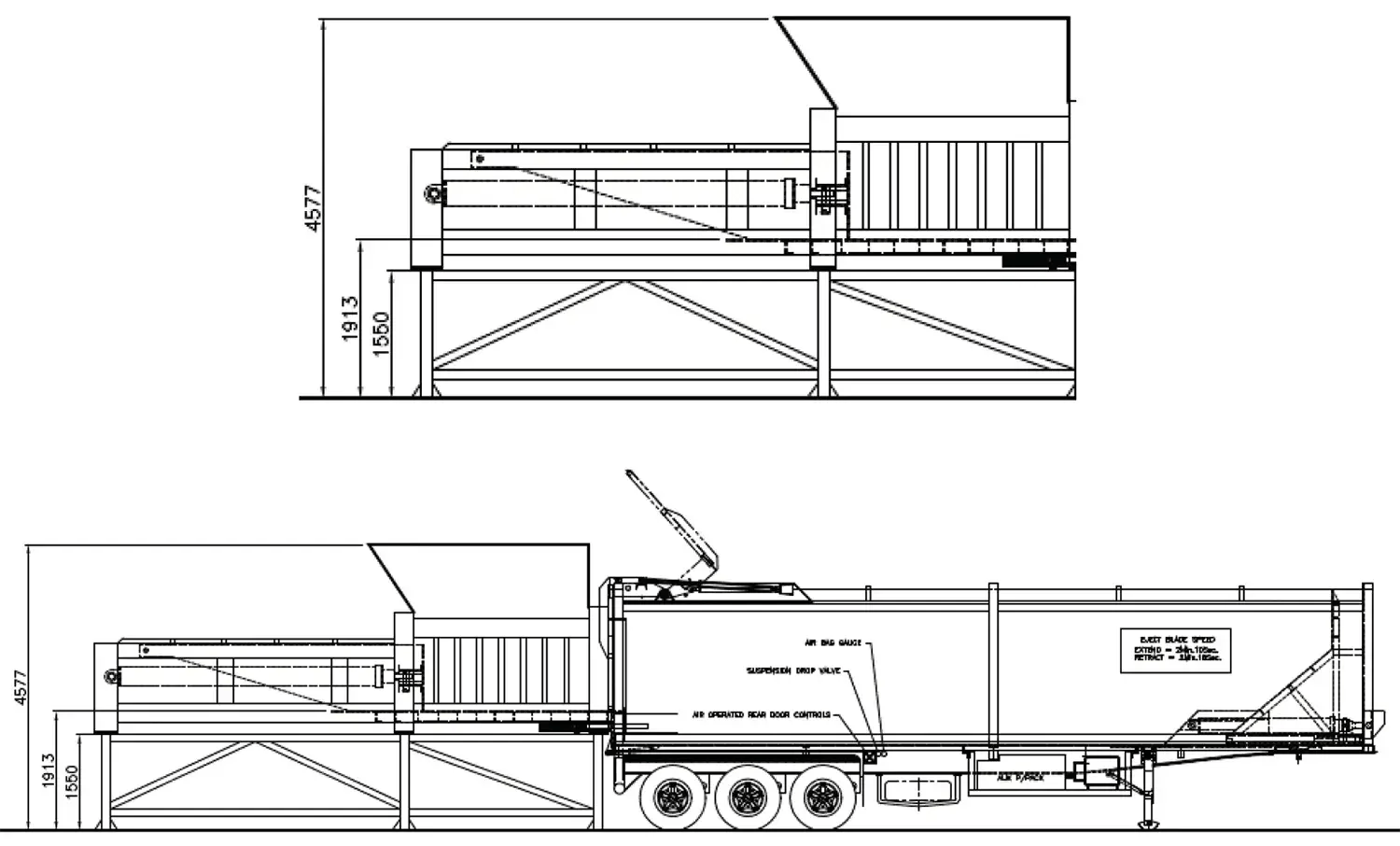

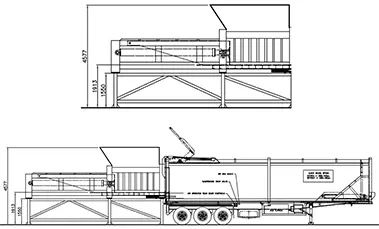

Overall Dimensions (L x W x H)	9605 mm x 3075 mm x 2000 mm (trailer height)
