Stationary
S1500 COMPACTOR

Overview

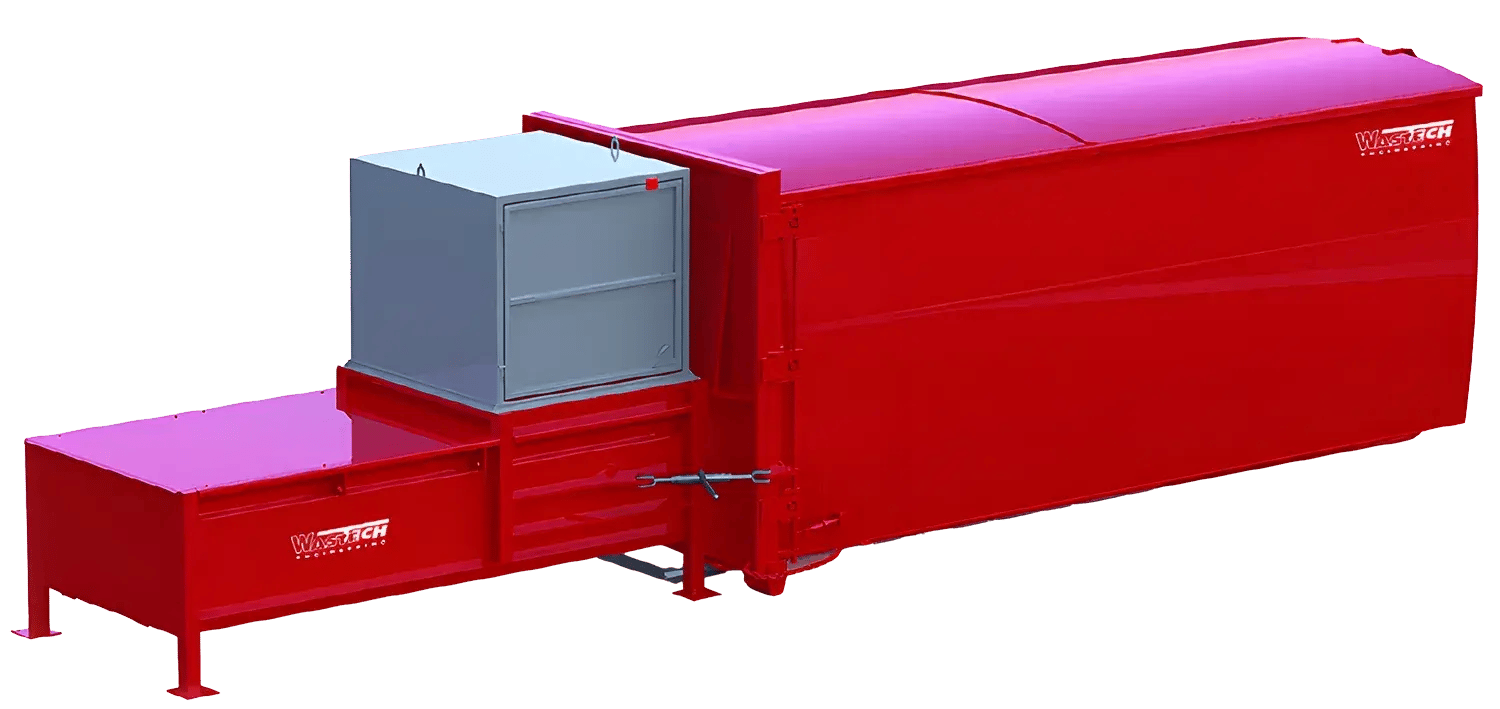

The S1500 Stationary Compactor provides compaction and containment of medium to large volumes of general waste, paper, cardboard and other recyclables.
This cardboard compactor can be designed for hand, bin lifter, tippler bin and chute loading. When full, the body or container is easily removed for emptying. The superior compaction forces provide high payloads to reduce your carbon footprint and your transport costs.
- Reduced cost to transport your waste and recycling off site.
- Reduced manual handling saving the cost of labour required to deal with the waste and recycling on site.
- Safer manual handling reducing lost time due to injury.
- Ability to handle your specific waste type and handling/loading method.
- Robust Construction ensures an extended equipment lifespan reducing the need for unforseen upgrades.
- Increased participation in a recycling program helping to reduce the organisations environmental impact.
- Increased time available for staff to concentrate on other activities within the business.
Key Features
Compatible with compactor bin sizes from 11m3 to 40m3.
Engineered to meet high safety standards that allow for hand loading, as well as bin lifter, tippler and chute loading capability.
Hydraulic power pack and electrical controls are contained within a protective enclosure on the rear deck of the compactor.
Suitable for Paper, Cardboard, General Waste, Plastic and Other Recyclables.
Technical Specifications
| Specification | Value |
|---|---|
| Clear Top Opening (W x L) | 1500mm x 1340mm |
| Machine Capacity | 110 m³/hr |
| Cycle Time | 47 s |
| Motor Size | 7.5 kW |
| Chamber Volume | 1.8 m³ |
| Swept Volume | 1.4 m³ |
| Hydraulic Cylinder Stroke | 1700 mm |
| Hydraulic Cylinder Size | 130 Bore mm, 90 Rod mm |
| Container Penetration | 350 mm |
| Discharge Opening | 1500mm W x 770mm H |
| Maximum Compaction Force | 225 kN |
| Power Required | 415V 20A |
| Hydraulic Pump Flow | 27 L/min |
| Pack Blade Face Size (W x H) | 1500 x 560 mm |
| Weight | 2330 kg |
| Operating Pressure | 150 bar (max 200) |
| Overall Dimensions (L x W x H) | 3920mm x 1800mm x 1340mm |
